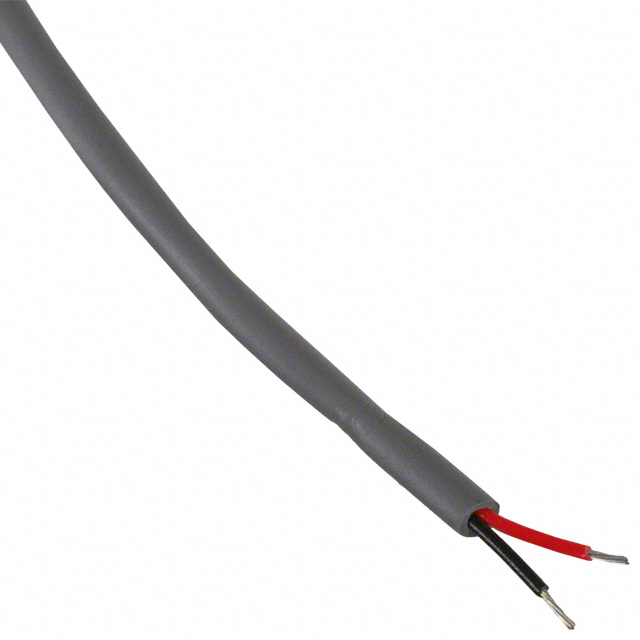

1899C SL002

Active

ALPHA WIRE

CABLE 2COND 16AWG SLATE 500'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 16AWG SLATE 500'

Technical Specifications

Parameters and characteristics for this part

Specification	1899C SL002

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	0.0117 in
Jacket (Insulation) Diameter [diameter]	5.64 mm
Jacket (Insulation) Diameter [diameter]	0.222 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Slate
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	16 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Number of Conductors	Conductor Material	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Usage	Jacket (Insulation) Material	Wire Gauge	Voltage	Length	Length
ALPHA WIRE 1899C SL005	5.64 mm	0.222 in	Slate	2	Copper Tinned	Poly-Vinyl Chloride (PVC)	0.02 in	0.508 mm	-20 C	80 C	30.5 m	100 ft	Multi-Conductor	19	0.0117 in	Communication Control	Poly-Vinyl Chloride (PVC)	16 AWG	300 V
ALPHA WIRE 1899C SL001	5.64 mm	0.222 in	Slate	2	Copper Tinned	Poly-Vinyl Chloride (PVC)	0.02 in	0.508 mm	-20 C	80 C			Multi-Conductor	19	0.0117 in	Communication Control	Poly-Vinyl Chloride (PVC)	16 AWG	300 V	1000 ft	304.8 m
ALPHA WIRE 1899C SL002	5.64 mm	0.222 in	Slate	2	Copper Tinned	Poly-Vinyl Chloride (PVC)	0.02 in	0.508 mm	-20 C	80 C	152.4 m	500 '	Multi-Conductor	19	0.0117 in	Communication Control	Poly-Vinyl Chloride (PVC)	16 AWG	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Slate 16 AWG 500.0' (152.4m)
