Q-3102J000H002M

Active

Amphenol Custom Cable

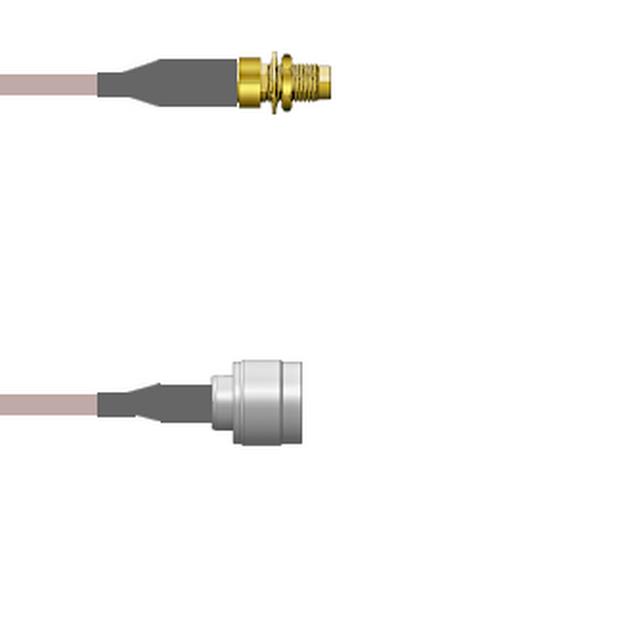

CBL ASSY SMA-NTYPE JACK-PLG 6.6'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE JACK-PLG 6.6'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-3102J000H002M

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-142
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	6.6 ft
Length	78.7 in
Length	2 m
Overall Impedance	50 Ohms
Style	SMA to N-Type

Part	2nd Contact Gender	2nd Connector	Cable Impedance	2nd Connector Mounting Type	Cable Type	1st Connector Mounting Type	1st Connector	1st Contact Gender	Frequency - Max [Max]	Color	Length	Length	Length	1st Connector Mounting Feature	Overall Impedance	Style	Features	Connector Impedance
Amphenol Custom Cable Q-3102J000H003M	Male	N-Type Plug	50 Ohms	Free Hanging (In-Line)	RG-142	Panel Mount	SMA Jack	Female	11 GHz	Copper	3 m	118.1 in	9.8 '	Bulkhead - Front Side Nut	50 Ohms	SMA to N-Type	Shielded	50 Ohms
Amphenol Custom Cable Q-3102J000H002M	Male	N-Type Plug	50 Ohms	Free Hanging (In-Line)	RG-142	Panel Mount	SMA Jack	Female	11 GHz	Copper	2 m	78.7 in	6.6 ft	Bulkhead - Front Side Nut	50 Ohms	SMA to N-Type	Shielded	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to N-Type RG-142 78.7" (2.0m) 6.6'
