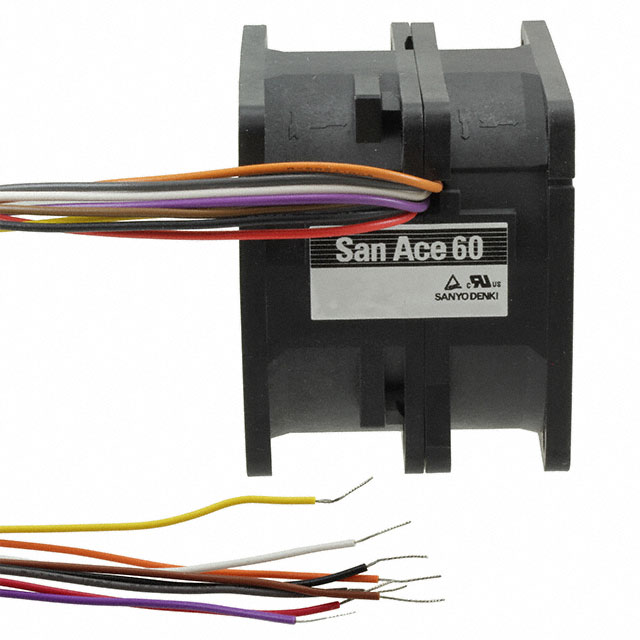

9CR0612P0H03

Obsolete

Sanyo Denki America Inc.

FAN AXIAL DUAL 60X76MM 12VDC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRotor Balancing Handling Instructions for Fan Motors

9CR0612P0H03

Obsolete

Sanyo Denki America Inc.

FAN AXIAL DUAL 60X76MM 12VDC

Deep-Dive with AI

DocumentsRotor Balancing Handling Instructions for Fan Motors

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9CR0612P0H03

Air Flow	69.9 CFM
Air Flow	1.96 m³/min
Approval Agency	UR, CSA, TUV
Bearing Type	Ball
Current Rating (Amps)	2.7 A
Fan Type	Tubeaxial (Dual)
Features	Counter-Rotating
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	64 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
RPM [custom]	10300 RPM
RPM [custom]	6500 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	450.8 Pa
Static Pressure	1.81 in H2O
Termination	4 Wire Leads per Fan
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	10.8 VDC
Weight	229.97 g
Weight	0.507 lb
Width [y]	76 mm

9CR0612 Series

Part	Width [y]	Fan Type	Current Rating (Amps)	Air Flow	Air Flow	Features	Bearing Type	Lifetime @ Temp.	Termination	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Approval Agency	Power (Watts)	Material - Blade	Static Pressure	Static Pressure	Voltage Range [Max]	Voltage Range [Min]	Weight	Weight	RPM [custom]	RPM [custom]	Size / Dimension [x]	Size / Dimension [y]	Material - Frame	Noise	Operating Temperature [Max]
Sanyo Denki America Inc. 9CR0612S001	76 mm	Tubeaxial (Dual)	3.2 A	80 CFM	2.24 mł/min	Counter-Rotating	Ball	40000 Hrs	3 Wire Leads per Fan	12 VDC	-10 °C	-10 °C	60 °C	60 °C	CSA TUV UR	38.4 W	Plastic	550.5 Pa	2.21 in H2O	13.2 VDC	10.8 VDC	229.97 g	0.507 lb	11500 RPM	7000 RPM	60 mm	60 mm	Plastic
Sanyo Denki America Inc. 9CR0612H001	76 mm	Tubeaxial (Dual)	2.7 A	70 CFM	1.96 m³/min		Ball		3 Wire Leads per Fan	12 VDC						32.4 W		450.8 Pa	1.81 in H2O	13.2 VDC	10.8 VDC	180.08 g	0.397 lb	10300 RPM	6500 RPM	60 mm	60 mm		64 dB(A)
Sanyo Denki America Inc. 9CR0612H501	51 mm	Tubeaxial (Dual)					Ball		3 Wire Leads	12 VDC					CSA TUV UL											60 mm	60 mm
Sanyo Denki America Inc. 9CR0612P5H03	51 mm	Tubeaxial (Dual)	2 A	65.3 CFM	1.83 m³/min		Ball	40000 Hrs	4 Wire Leads per Fan	12 VDC	-20 C	-20 °C	70 °C		CSA TUV UL	24 W	Plastic	500.7 Pa	2.01 in H2O	13.2 VDC	10.8 VDC	180.08 g	0.397 lb			60 mm	60 mm	Plastic	65 dB	70 °C
Sanyo Denki America Inc. 9CR0612G501	51 mm	Tubeaxial (Dual)	2.7 A	71.7 CFM	2.01 m³/min	Counter-Rotating Locked Rotor Protection Speed Sensor (Tach)	Ball	40000 Hrs	3 Wire Leads per Fan	12 VDC	-20 C	-20 °C	70 °C		CSA TUV UL	32.4 W	Plastic	600 Pa	2.41 in H2O	13.2 VDC	10.8 VDC	180.08 g	0.397 lb	11500 RPM	9000 RPM	60 mm	60 mm	Plastic	68 dB	70 °C
Sanyo Denki America Inc. 9CR0612P0H03	76 mm	Tubeaxial (Dual)	2.7 A	69.9 CFM	1.96 m³/min	Counter-Rotating	Ball	40000 Hrs	4 Wire Leads per Fan	12 VDC	-10 °C	-10 °C	60 °C	60 °C	CSA TUV UR		Plastic	450.8 Pa	1.81 in H2O	13.2 VDC	10.8 VDC	229.97 g	0.507 lb	10300 RPM	6500 RPM	60 mm	60 mm	Plastic	64 dB(A)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

9CR0612 Series

Fan Tubeaxial (Dual) 12VDC Square - 60mm L x 60mm H Ball 69.9 CFM (1.96m³/min) 4 Wire Leads per Fan
