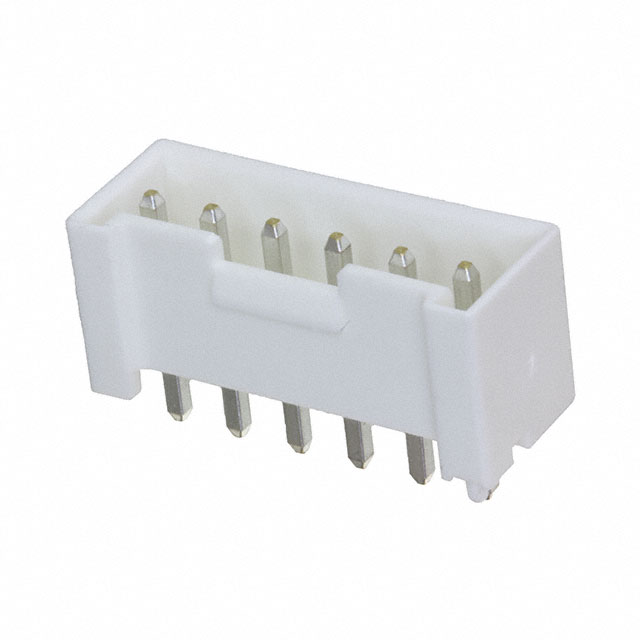

B6P-VH-FB-B
ActiveJST Sales America Inc.
CONN HEADER VERT 6POS 3.96MM
Deep-Dive with AI
Search across all available documentation for this part.
B6P-VH-FB-B
ActiveJST Sales America Inc.
CONN HEADER VERT 6POS 3.96MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B6P-VH-FB-B |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.146 in |
| Contact Length - Post | 3.7 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 10 A |
| Fastening Type | Locking Ramp |
| Features | Board Guide |
| Insulation Color | Natural |
| Insulation Height | 0.433 in |
| Insulation Height | 11 mm |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 0.156 in |
| Pitch - Mating | 3.96 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VDC |
B6P-VH Series
| Part | Mated Stacking Heights | Material Flammability Rating | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Fastening Type | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding | Overall Contact Length | Overall Contact Length | Insulation Height | Insulation Height | Mounting Type | Number of Positions Loaded | Insulation Color | Contact Length - Post | Contact Length - Post | Insulation Material | Contact Type | Style | Number of Positions | Contact Length - Mating | Contact Length - Mating | Current Rating (Amps) | Contact Shape | Contact Material | Voltage Rating | Number of Rows | Termination | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JST Sales America Inc. | 16.5 mm | UL94 V-0 | Tin | 0.156 in | 3.96 mm | Locking Ramp | Header | -25 °C | 85 °C | Shrouded - 1 Wall | 0.575 in | 14.6 mm | 0.37 in | 9.4 mm | Through Hole | All | Natural | 0.146 in | 3.7 mm | Polyamide (PA66) Nylon 6/6 | Male Pin | Board to Cable/Wire | 6 | 7.7 mm | 0.303 in | 10 A | Square | Brass | 250 VDC | 1 | Solder | |
JST Sales America Inc. | UL94 V-0 | Tin | 0.156 in | 3.96 mm | Locking Ramp | Header | -25 °C | 85 °C | Shrouded - 1 Wall | 0.575 in | 14.6 mm | 0.37 in | 9.4 mm | Through Hole | All | Natural | 0.146 in | 3.7 mm | Polybutylene Terephthalate (PBT) Glass Filled | Male Pin | Board to Cable/Wire | 6 | 7.7 mm | 0.303 in | 10 A | Square | Brass | 250 VDC | 1 | Solder | ||
JST Sales America Inc. | UL94 V-0 | Tin | 0.156 in | 3.96 mm | Locking Ramp | Header | -25 °C | 85 °C | Shrouded - 4 Wall | 0.433 in | 11 mm | Through Hole | All | Natural | 0.146 in | 3.7 mm | Polybutylene Terephthalate (PBT) Glass Filled | Male Pin | Board to Cable/Wire | 6 | 10 A | Square | Copper Alloy | 250 VDC | 1 | Solder | Board Guide |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.60 | |
| 10 | $ 0.52 | |||
| 200 | $ 0.43 | |||
| 600 | $ 0.37 | |||
| 1000 | $ 0.31 | |||
| 5000 | $ 0.27 | |||
| 10000 | $ 0.25 | |||
Description
General part information
B6P-VH Series
Connector Header Through Hole 6 position 0.156" (3.96mm)
