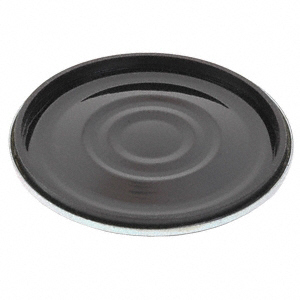

CLS0301MA-L152

Active

CUI Devices

SPEAKER 8OHM 200MW TOP PORT 89DB

Search across all available documentation for this part.

Active

CUI Devices

SPEAKER 8OHM 200MW TOP PORT 89DB

Technical Specifications

Parameters and characteristics for this part

Specification	CLS0301MA-L152

Efficiency - dBA	89 dBA
Efficiency - Testing	1 mW/100mm
Efficiency - Type	Sound Pressure Level (SPL)
Frequency - Self Resonant	550 Hz
Frequency Range [Max]	13 kHz
Frequency Range [Min]	550 Hz
Height - Seated (Max) [Max]	0.157 in
Height - Seated (Max) [Max]	4 mm
Impedance	8 Ohms
Material - Cone	Polyester, Polyethylene Terephthalate (PET)
Material - Magnet	Nd-Fe-B
Port Location	Top
Power - Max [Max]	400 mW
Power - Rated	200 mW
Shape	Round
Size / Dimension [diameter]	30 mm
Size / Dimension [diameter]	1.181 inches
Technology	Magnetic
Termination	Wire Leads
Type	Low Profile

Part	Technology	Frequency Range [Max]	Frequency Range [Min]	Efficiency - Testing	Power - Rated	Power - Max [Max]	Shape	Termination	Impedance	Material - Cone	Frequency - Self Resonant	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	Efficiency - dBA	Size / Dimension [diameter]	Size / Dimension [diameter]	Port Location	Efficiency - Type	Material - Magnet
CUI Devices CLS0301MA-L152	Magnetic	13 kHz	550 Hz	1 mW/100mm	200 mW	400 mW	Round	Wire Leads	8 Ohms	Polyester Polyethylene Terephthalate (PET)	550 Hz	0.157 in	4 mm	Low Profile	89 dBA	30 mm	1.181 inches	Top	Sound Pressure Level (SPL)	Nd-Fe-B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Ohms Low Profile Speaker 200 mW 550 Hz ~ 13 kHz Top Round
