8012-4013

Active

Amphenol SV Microwave

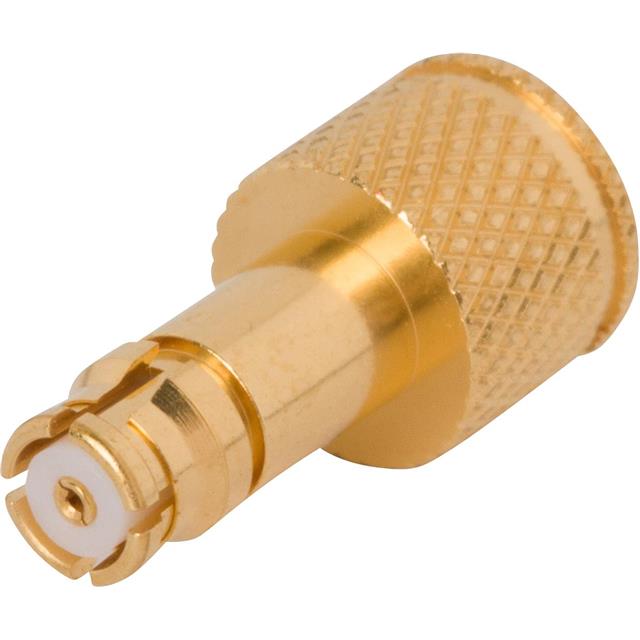

CONN TERMINATOR JACK SMP 50 OHM

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN TERMINATOR JACK SMP 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	8012-4013

Body Finish	Gold
Body Material	Beryllium Copper
Connector Type	Female Socket, Jack
Contact Finish	Gold
Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	26.5 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

Part	Frequency - Max [Max]	Body Finish	Dielectric Material	Connector Type	Mounting Type	Impedance	Body Material	Contact Material	Contact Finish
Amphenol SV Microwave 8012-4006	26.5 GHz	Gold	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Cap Free Hanging	50 Ohms	Beryllium Copper	Beryllium Copper	Gold
Amphenol SV Microwave 8012-4008		Gold	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Cap Free Hanging	50 Ohms	Beryllium Copper	Beryllium Copper	Gold
Amphenol SV Microwave 8012-4013	26.5 GHz	Gold	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Cap Free Hanging	50 Ohms	Beryllium Copper	Beryllium Copper	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	25	$ 183.48

General part information

Terminator Coax Connector Jack, Female Socket SMP 50 Ohms
