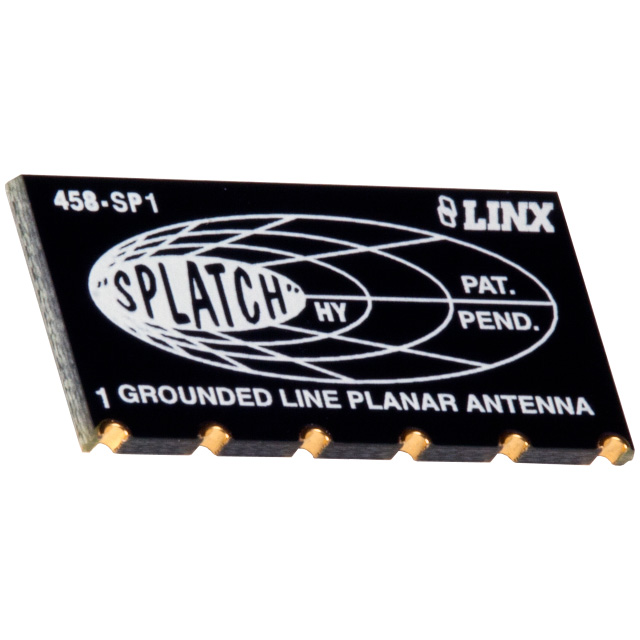

ANT-458-SP

Unknown

TE Connectivity Linx

RF ANT 458MHZ CHIP SOLDER SMD

Search across all available documentation for this part.

Unknown

TE Connectivity Linx

RF ANT 458MHZ CHIP SOLDER SMD

Technical Specifications

Parameters and characteristics for this part

Specification	ANT-458-SP

Antenna Type	Chip
Applications	ISM, Alarms, Security Systems, Remote Control
Frequency (Center/Band)	458 MHz
Frequency Group [Max]	1 GHz
Frequency Group [Min]	300 MHz
Frequency Range [Max]	462 MHz
Frequency Range [Min]	454 MHz
Gain	-5.4 dBi
Height (Max) [Max]	1.5 mm
Height (Max) [Max]	0.059 in
Mounting Type	Surface Mount
Number of Bands	1
RF Family/Standard	General ISM
Termination	Solder
VSWR	1.9

Part	Gain	RF Family/Standard	Height (Max) [Max]	Height (Max) [Max]	Termination	Frequency (Center/Band)	VSWR	Frequency Group [Max]	Frequency Group [Min]	Applications	Mounting Type	Number of Bands	Antenna Type	Frequency Range [Max]	Frequency Range [Min]
TE Connectivity Linx ANT-458-SP	-5.4 dBi	General ISM	1.5 mm	0.059 in	Solder	458 MHz	1.9	1 GHz	300 MHz	Alarms ISM Remote Control Security Systems	Surface Mount	1	Chip	462 MHz	454 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 3.53

General part information

RF ANTENNA Alarms, ISM, Remote Control, Security Systems Chip Solder Surface Mount
