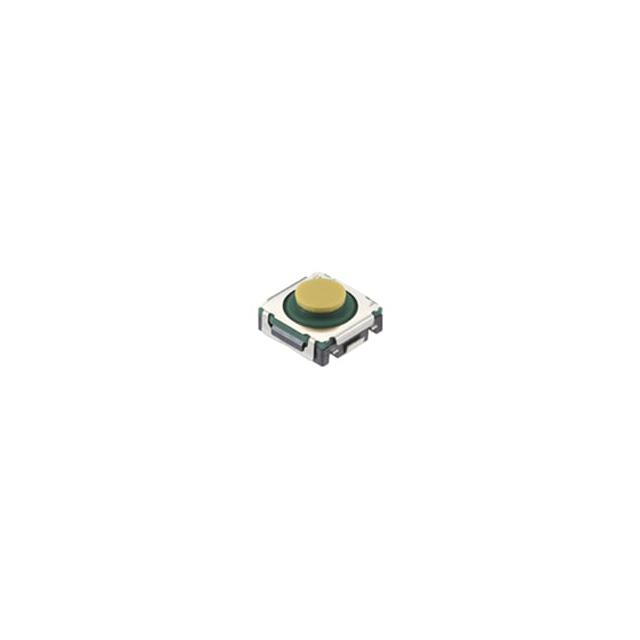

SKSTACE010
ActiveAlps Alpine
SWITCH TACTILE SPST-NO 0.05A 16V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SKSTACE010
ActiveAlps Alpine
SWITCH TACTILE SPST-NO 0.05A 16V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SKSTACE010 |
|---|---|
| Actuator Height off PCB, Vertical [z] | 3.95 mm |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 16 VDC |
| Illumination | Non-Illuminated |
| Mechanical Life | 500000 Cycles |
| Mounting Type | Surface Mount |
| Operating Force | 714 gf |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Outline [x] | 8.5 mm |
| Outline [y] | 8.5 mm |
| Switch Function | Off-Mom |
| Termination Style | J Lead |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.42 | |
| 10 | $ 1.36 | |||
| 25 | $ 1.28 | |||
| 100 | $ 1.11 | |||
| 250 | $ 1.01 | |||
| 500 | $ 0.94 | |||
| Digi-Reel® | 1 | $ 1.42 | ||
| 10 | $ 1.36 | |||
| 25 | $ 1.28 | |||
| 100 | $ 1.11 | |||
| 250 | $ 1.01 | |||
| 500 | $ 0.94 | |||
| Tape & Reel (TR) | 1500 | $ 0.87 | ||
| 3000 | $ 0.79 | |||
| 7500 | $ 0.74 | |||
| 10500 | $ 0.68 | |||
Description
General part information
SKSTA Series
Tactile Switch SPST-NO Top Actuated Surface Mount
