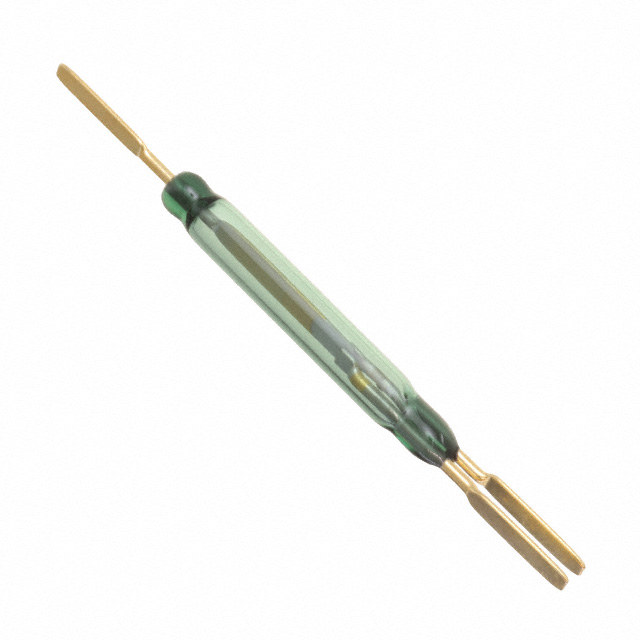

GC1917 - 6570
ActiveComus International
SWITCH REED SPDT 1A 400V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GC1917 - 6570
ActiveComus International
SWITCH REED SPDT 1A 400V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GC1917 - 6570 |
|---|---|
| Capacitance | 1 pF |
| Circuit | SPDT |
| Current - Carry | 2 A |
| Current - Switching | 1 A |
| Length - Overall [x] | 2.75 in |
| Length - Overall [x] | 69.85 mm |
| Mounting Type | Surface Mount |
| Operate Range [Max] | 70 AT |
| Operate Range [Min] | 65 AT |
| Operate Time | 2 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Power - Rated | 60 W |
| Release Range | 20 AT |
| Release Time | 1.5 ms |
| Size - Body [diameter] | 0.22 in |
| Size - Body [diameter] | 5.59 mm |
| Size - Body [z] | 36.07 mm |
| Size - Body [z] | 1.42 in |
| Termination Style | Axial, Flat |
| Type | Glass Body Reed |
| Voltage - Switching AC | 400 V |
| Voltage - Switching DC | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.70 | |
| 10 | $ 5.34 | |||
| 25 | $ 4.75 | |||
| 50 | $ 4.51 | |||
| 100 | $ 4.27 | |||
| 250 | $ 3.80 | |||
| 500 | $ 3.56 | |||
| 1000 | $ 3.32 | |||
Description
General part information
GC1917 Series
Glass Body Reed Switch SPDT 65 ~ 70AT Operate Range 60W 1A (AC/DC) 400 V Surface Mount
