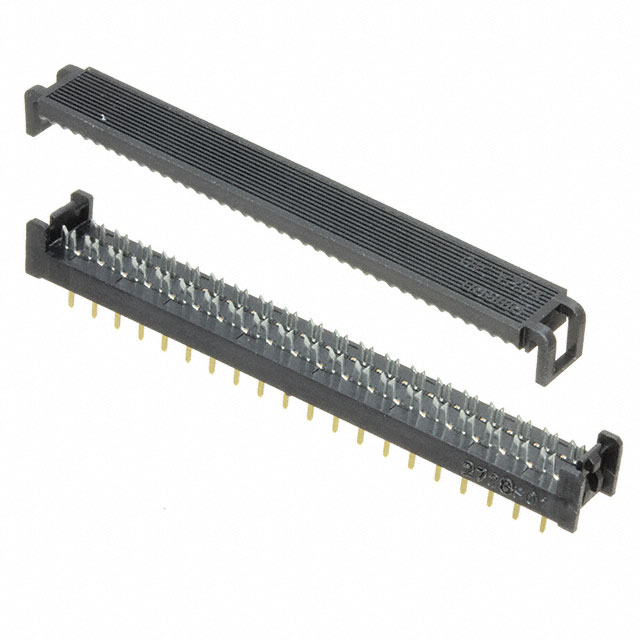

XG2A-4002

Active

Omron Electronics Inc-EMC Div

CONN DIP HDR IDC 40P 28AWG VERT

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

CONN DIP HDR IDC 40P 28AWG VERT

Technical Specifications

Parameters and characteristics for this part

Part	Color	Number of Positions Loaded	Connector Type	Features	Mounting Type	Number of Rows	Board-Side Pitch	Board-Side Pitch	Row Spacing [x]	Row Spacing	Cable Termination	Cable Pitch	Cable Pitch	Wire Gauge	Number of Positions	Contact Finish
Omron Electronics Inc-EMC Div XG2A-4002	Black	All	DIP Header Ribbon Cable	Feed Through	Through Hole	2	0.1 in	2.54 mm	0.1 in	2.54 mm	IDC	1.27 mm	0.05 in	28 AWG	40	Tin
Omron Electronics Inc-EMC Div XG2A-3402	Black	All	DIP Header Ribbon Cable	Feed Through	Through Hole	2	0.1 in	2.54 mm	0.1 in	2.54 mm	IDC	1.27 mm	0.05 in	28 AWG	34	Tin
Omron Electronics Inc-EMC Div XG2A-6002	Black	All	DIP Header Ribbon Cable	Feed Through	Through Hole	2	0.1 in	2.54 mm	0.1 in	2.54 mm	IDC	1.27 mm	0.05 in	28 AWG	60	Tin
Omron Electronics Inc-EMC Div XG2A-1401	Black	All	DIP Header Ribbon Cable	Feed Through	Through Hole	2	0.1 in	2.54 mm	0.1 in	2.54 mm	IDC	1.27 mm	0.05 in	28 AWG	14	Tin
Omron Electronics Inc-EMC Div XG2A-6001	Black	All	DIP Header Ribbon Cable	Feed Through	Through Hole	2	0.1 in	2.54 mm	0.1 in	2.54 mm	IDC	1.27 mm	0.05 in	28 AWG	60	Tin
Omron Electronics Inc-EMC Div XG2A-2001	Black	All	DIP Header Ribbon Cable	Feed Through	Through Hole	2	0.1 in	2.54 mm	0.1 in	2.54 mm	IDC	1.27 mm	0.05 in	28 AWG	20	Tin
Omron Electronics Inc-EMC Div XG2A-3002	Black	All	DIP Header Ribbon Cable	Feed Through	Through Hole	2	0.1 in	2.54 mm	0.1 in	2.54 mm	IDC	1.27 mm	0.05 in	28 AWG	30	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 4.22
