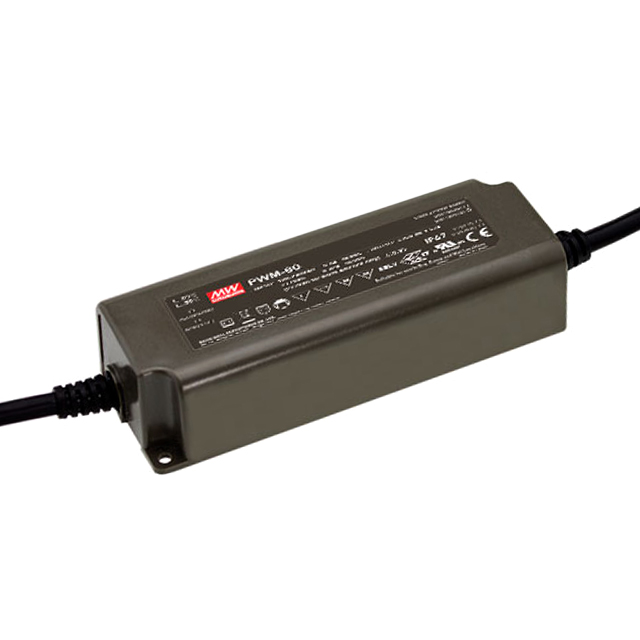

PWM-60-12

Active

MEAN WELL USA Inc.

LED DRIVER CV AC/DC 12V 5A

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

LED DRIVER CV AC/DC 12V 5A

Technical Specifications

Parameters and characteristics for this part

Part	Ratings	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Output	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Number of Outputs	Dimming	Topology	Voltage - Input (Min) [Min]	Efficiency	Type	Termination Style	Mounting Type	Features	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency
MEAN WELL USA Inc. PWM-60-24DA	IP67	305 VAC	2.5 A	24 V	5.91 "	1.38 in	53 mm	35 mm	150 mm	2.09 "	3750 V	1	DALI	AC DC Converter	90 VAC	89 %	Constant Voltage	Wire Leads	Chassis Mount	OCP OTP OVP SCP	60 W	85 °C	-40 °C	CB CCC CE cURus EAC ENEC
MEAN WELL USA Inc. PWM-60-48	IP67	305 VAC	1.25 A	48 V	5.91 "	1.38 in	53 mm	35 mm	150 mm	2.09 "	3750 V	1	Analog PWM	AC DC Converter	90 VAC	90 %	Constant Voltage	Wire Leads	Chassis Mount	OCP OTP OVP SCP	60 W	85 °C	-40 °C	CB CCC CE cURus ENEC
MEAN WELL USA Inc. PWM-60-36	IP67	305 VAC	1.67 A	36 V	5.91 "	1.38 in	53 mm	35 mm	150 mm	2.09 "	3750 V	1	Analog PWM	AC DC Converter	90 VAC	90 %	Constant Voltage	Wire Leads	Chassis Mount	OCP OTP OVP SCP	60 W	85 °C	-40 °C	CB CCC CE cURus ENEC
MEAN WELL USA Inc. PWM-60-12	IP67	305 VAC	5 A	12 V	5.91 "	1.38 in	53 mm	35 mm	150 mm	2.09 "	3750 V	1	Analog PWM	AC DC Converter	90 VAC	86 %	Constant Voltage	Wire Leads	Chassis Mount	OCP OTP OVP SCP	60 W	85 °C	-40 °C	CB CCC CE cURus ENEC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5A 12V Constant Voltage LED Driver AC DC Converter Topology 1 Output
