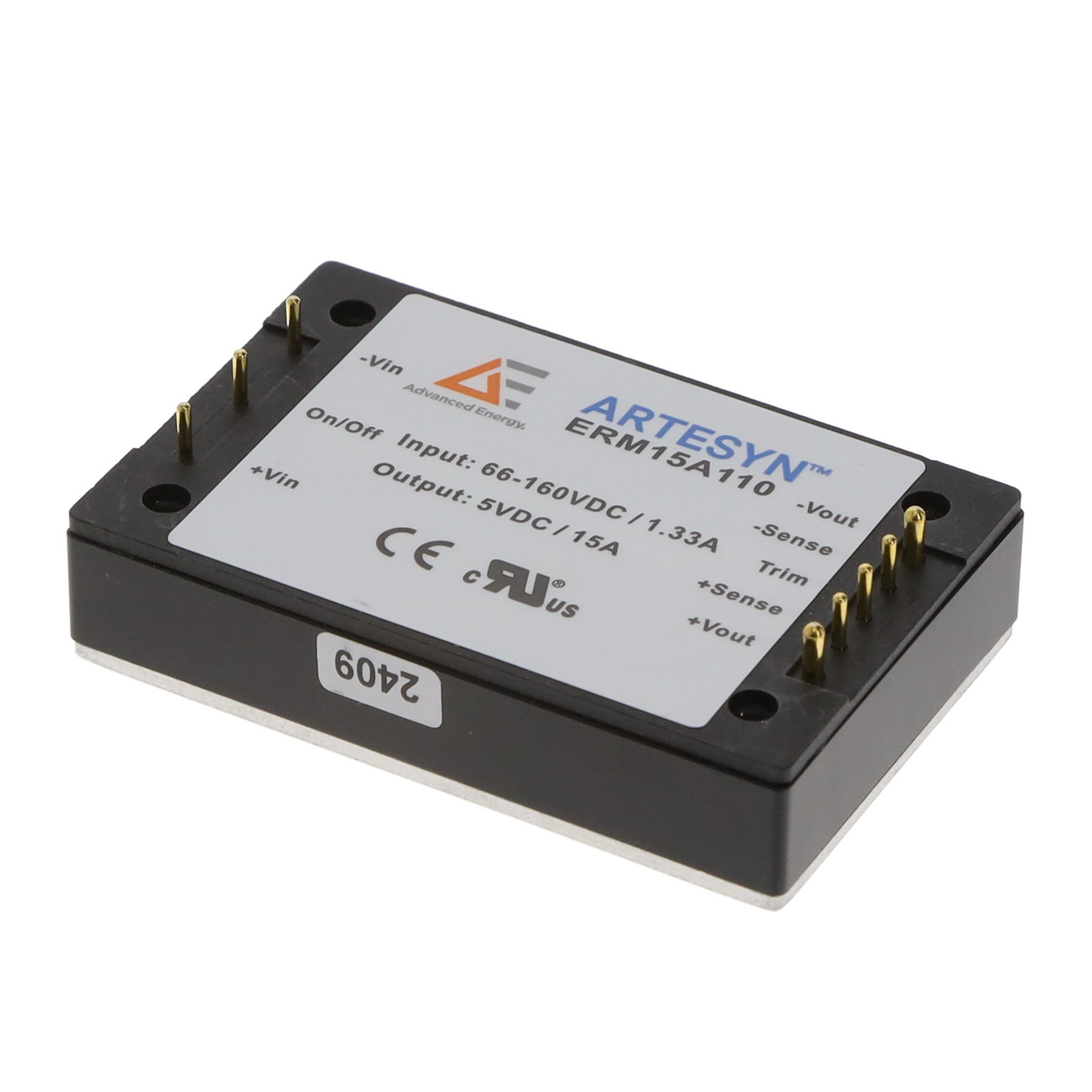

ERM15A110
ActiveARTESYN / Advanced Energy
DC DC CONVERTER 5V 75W
Deep-Dive with AI
Search across all available documentation for this part.
ERM15A110
ActiveARTESYN / Advanced Energy
DC DC CONVERTER 5V 75W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ERM15A110 |
|---|---|
| Applications | Railway, ITE (Commercial) |
| Current - Output (Max) [Max] | 15 A |
| Efficiency | 89 % |
| Features | UVLO, Remote On/Off, SCP, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-DIP Module |
| Power (Watts) | 75 W |
| Size / Dimension [x] | 57.9 mm |
| Size / Dimension [x] | 2.28 in |
| Size / Dimension [y] | 1.45 in |
| Size / Dimension [y] | 36.8 mm |
| Size / Dimension [z] | 12.7 mm |
| Size / Dimension [z] | 0.5 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 160 V |
| Voltage - Input (Min) [Min] | 66 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 120.26 | |
| 5 | $ 119.31 | |||
| 10 | $ 118.35 | |||
| 25 | $ 110.72 | |||
| 50 | $ 106.90 | |||
Description
General part information
ERM15A Series
Isolated Module DC DC Converter 1 Output 5V 15A 66V - 160V Input
