5973605607F
ActiveDIALIGHT

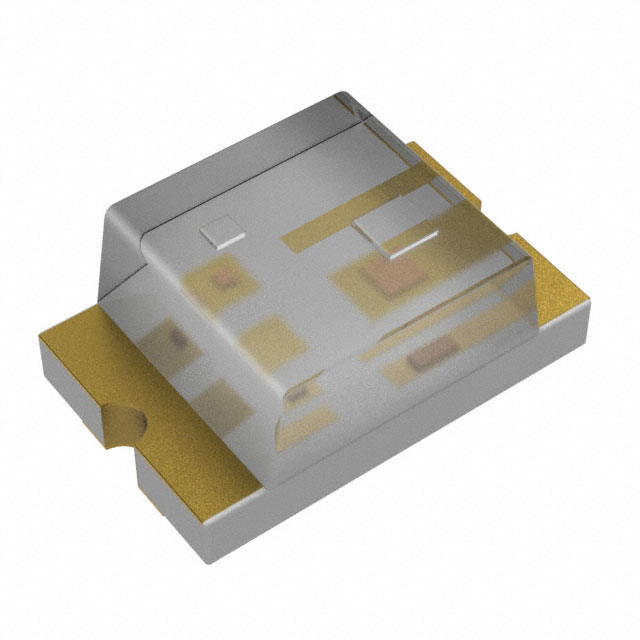

LED BLUE 0805 SMD
Deep-Dive with AI
Search across all available documentation for this part.
5973605607F
ActiveDIALIGHT
LED BLUE 0805 SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5973605607F |
|---|---|
| Color | Blue |
| Configuration | Standard |
| Current - Test | 2 mA |
| Height (Max) [Max] [z] | 1.1 mm |
| Lens Size [x] | 1.4 mm |
| Lens Size [y] | 1.25 mm |
| Lens Style | Rectangle with Flat Top |
| Millicandela Rating | 15 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0805 |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [y] | 1.25 mm |
| Supplier Device Package | 0805 |
| Viewing Angle | 130 ° |
| Voltage - Forward (Vf) (Typ) | 2.8 V |
| Wavelength - Peak | 468 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.39 | |
| 10 | $ 0.24 | |||
| 100 | $ 0.14 | |||
| 1000 | $ 0.11 | |||
| Digi-Reel® | 1 | $ 0.39 | ||
| 10 | $ 0.24 | |||
| 100 | $ 0.14 | |||
| 1000 | $ 0.11 | |||
| Tape & Reel (TR) | 3000 | $ 0.10 | ||
| 6000 | $ 0.09 | |||
| 15000 | $ 0.08 | |||
| 30000 | $ 0.08 | |||
| 75000 | $ 0.08 | |||
Description
General part information
4973605 Series
Blue LED Indication - Discrete 2.8V 0805 (2012 Metric)
