PIM182

Obsolete

Pimoroni Ltd

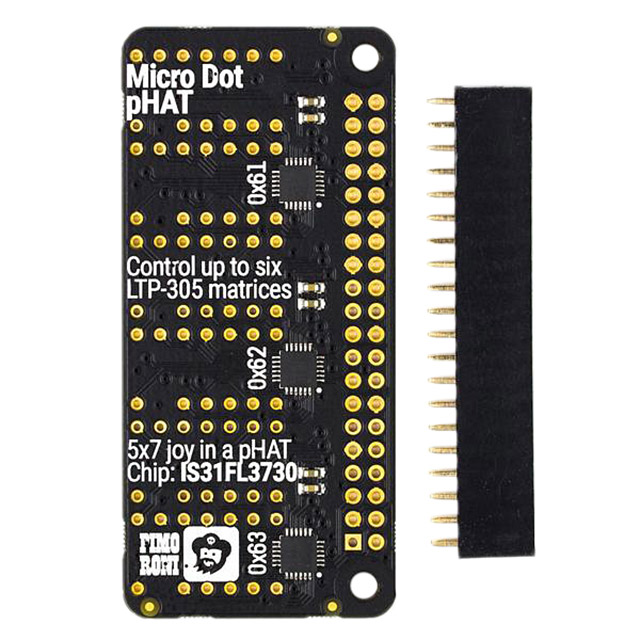

MICRO DOT PHAT (PCB ONLY)

Search across all available documentation for this part.

Obsolete

Pimoroni Ltd

MICRO DOT PHAT (PCB ONLY)

Technical Specifications

Parameters and characteristics for this part

Specification	PIM182

Contents	Board(s), Header(s)
Function	LED Dot Matrix 7x5 6-Digit
Interconnect System	Raspberry Pi HAT (40 pin)
Note	Header(s) Not Installed, Display Not Included
Platform	Raspberry Pi
Suggested Programming Environment	Python
Type	Display
Utilized IC / Part	IS31FL3730

Part	Note	Function	Contents	Utilized IC / Part	Interconnect System	Type	Suggested Programming Environment	Platform
Pimoroni Ltd PIM187	Assembly Required	LED Dot Matrix 7x5 2-Digit	Accessories Board(s) Header(s)	IS31FL3730 LTP-305	Raspberry Pi HAT (40 pin)	Display	Python	Raspberry Pi
Pimoroni Ltd PIM526	Header(s) Not Installed	LED Dot Matrix 7x5 2-Digit	Board(s) Header(s)	IS31FL3730 LTP-305		Display	C++ MicroPython Python	Raspberry Pi
Pimoroni Ltd PIM186	Assembly Required	LED Dot Matrix 7x5 6-Digit	Accessories Board(s) Header(s)	IS31FL3730 LTP-305	Raspberry Pi HAT (40 pin)	Display	Python	Raspberry Pi
Pimoroni Ltd PIM182	Header(s) Not Installed Display Not Included	LED Dot Matrix 7x5 6-Digit	Board(s) Header(s)	IS31FL3730	Raspberry Pi HAT (40 pin)	Display	Python	Raspberry Pi

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IS31FL3730 LED Dot Matrix 7x5 6-Digit Display Raspberry Pi Platform Evaluation Expansion Board
