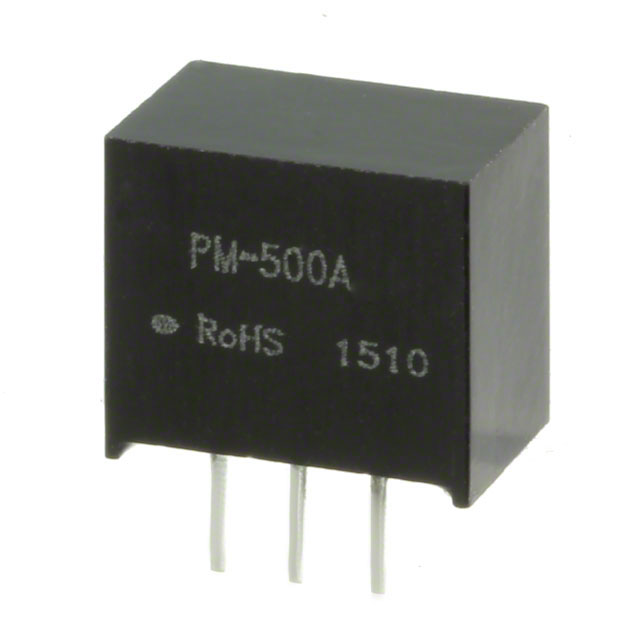

PM-500A150

Active

Volgen + Furuno

DC DC CONVERTER 15V

Search across all available documentation for this part.

Active

Volgen + Furuno

DC DC CONVERTER 15V

Technical Specifications

Parameters and characteristics for this part

Specification	PM-500A150

Applications	ITE (Commercial)
Current - Output (Max) [Max]	500 mA
Efficiency	96 %
Features	OTP, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	3-SIP Module
Size / Dimension [x]	0.46 in
Size / Dimension [x]	11.6 mm
Size / Dimension [y]	7.6 mm
Size / Dimension [y]	0.3 "
Size / Dimension [z]	10.2 mm
Size / Dimension [z]	0.4 "
Type	Linear Regulator Replacement
Voltage - Input (Max) [Max]	32 V
Voltage - Input (Min) [Min]	18 V
Voltage - Output 1	15 V

Part	Type	Voltage - Input (Max) [Max]	Efficiency	Applications	Voltage - Input (Min) [Min]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max) [Max]	Package / Case	Voltage - Output 1	Power (Watts)
Volgen + Furuno PM-500A150	Linear Regulator Replacement	32 V	96 %	ITE (Commercial)	18 V	Through Hole	85 °C	-40 °C	1	OTP SCP	7.6 mm	0.46 in	11.6 mm	10.2 mm	0.4 "	0.3 "	500 mA	3-SIP Module	15 V
Volgen + Furuno PM-500A65	Linear Regulator Replacement	32 V	94 %	ITE (Commercial)	8 V	Through Hole	85 °C	-40 °C	1	OTP SCP	7.6 mm	0.46 in	11.6 mm	10.2 mm	0.4 "	0.3 "	500 mA	3-SIP Module	6.5 V	0.5 W
Volgen + Furuno PM-500A33	Linear Regulator Replacement	28 V	91 %	ITE (Commercial)	4.75 V	Through Hole	85 °C	-40 °C	1	OTP SCP	7.6 mm	0.46 in	11.6 mm	10.2 mm	0.4 "	0.3 "	500 mA	3-SIP Module	3.3 V	0.5 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	200	$ 3.44

General part information

Linear Regulator Replacement DC DC Converter 1 Output 15V 500mA 18V - 32V Input

Technical documentation and resources

No documents available
