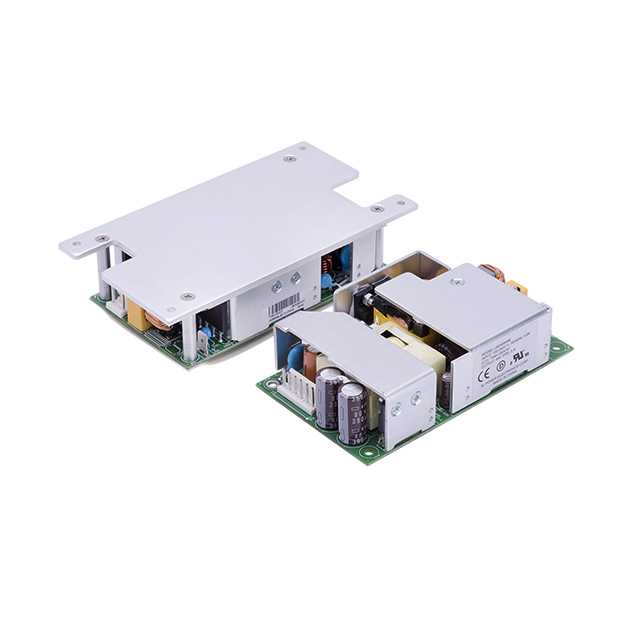

LB240S48K

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 48V 240W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 48V 240W

Technical Specifications

Parameters and characteristics for this part

Specification	LB240S48K

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	5 A
Efficiency	92 %
Features	PFC, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Power (Watts)	240 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	1.22 in
Size / Dimension [z]	31.1 mm
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

Part	Current - Output 1	Power (Watts)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Efficiency	Approval Agency	Number of Outputs	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Features	Mounting Type	Voltage - Isolation	Type	Minimum Load Required	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Voltage - Output 1
SL POWER / Advanced Energy LB240S48K	5 A	240 W	5 in	127 mm	1.22 in	31.1 mm	3 "	76.2 mm	92 %	CE	1	-10 °C	158 °F	PFC Universal Input	Chassis Mount	3000 V	Open Frame		90 VAC	264 VAC	ITE (Commercial)	48 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	80	$ 119.15

General part information

Open Frame AC DC Converters 1 Output 48V 90 ~ 264 VAC Input
