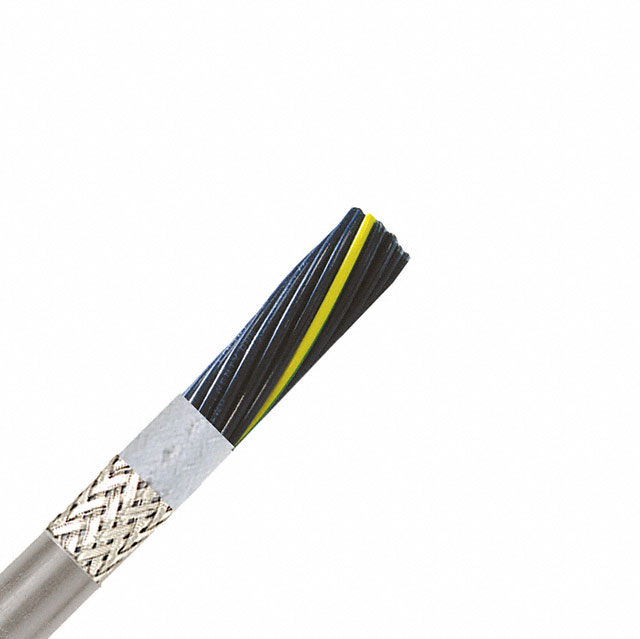

601605CY
ActiveLAPP
CABLE 5COND 16AWG GRAY SHLD FEET
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
601605CY
ActiveLAPP
CABLE 5COND 16AWG GRAY SHLD FEET
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 601605CY |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 30 |
| Conductor Strand [custom] | 0.0102 in |
| Features | Oil Resistant |
| Jacket (Insulation) Diameter [diameter] | 11.46 mm |
| Jacket (Insulation) Diameter [diameter] | 0.451 in |
| Jacket (Insulation) Material | Thermoplastic Polymer |
| Jacket Color | Gray |
| Length | 15.24 m, 3.05 m |
| Length | Enter Number of Feet in Order Quantity |
| Length | 10 ft |
| Length [x] | 50 ft, 25 ft, 100 ft |
| Length [x] | 7.62 m, 30.5 m |
| Number of Conductors | 5 |
| Shield Coverage | 85 % |
| Shield Material | Copper, Tinned |
| Shield Type | Braid |
| Spool Size | 914.4 m |
| Spool Size [x] | 3000 ' |
| Wire Gauge | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 81.53 | |
| 1 | $ 142.90 | |||
| 1 | $ 30.27 | |||
| 1 | $ 256.24 | |||
| 2 | $ 77.43 | |||
| 2 | $ 136.18 | |||
| 3 | $ 240.43 | |||
| 3 | $ 28.36 | |||
| 5 | $ 227.77 | |||
| 5 | $ 73.79 | |||
| 5 | $ 26.94 | |||
| 5 | $ 127.77 | |||
| 10 | $ 216.70 | |||
| 10 | $ 121.04 | |||
| 10 | $ 69.23 | |||
| 10 | $ 25.67 | |||
| 25 | $ 205.63 | |||
| 25 | $ 115.16 | |||
| 25 | $ 24.09 | |||
| 25 | $ 65.59 | |||
| 50 | $ 22.82 | |||
| 50 | $ 109.28 | |||
| 50 | $ 62.40 | |||
| 100 | $ 59.21 | |||
| 100 | $ 21.71 | |||
| Digi-Spool®, Continuous Spool | 1 | $ 6.79 | ||
| 2 | $ 6.47 | |||
| 3 | $ 6.29 | |||
| 5 | $ 6.07 | |||
| 7 | $ 5.92 | |||
| 10 | $ 5.78 | |||
| 25 | $ 5.41 | |||
| 50 | $ 5.15 | |||
| 100 | $ 4.89 | |||
Description
General part information
601605 Series
5 Conductor Multi-Conductor Cable Gray 16 AWG Braid Enter Number of Feet in Order Quantity
Documents
Technical documentation and resources
