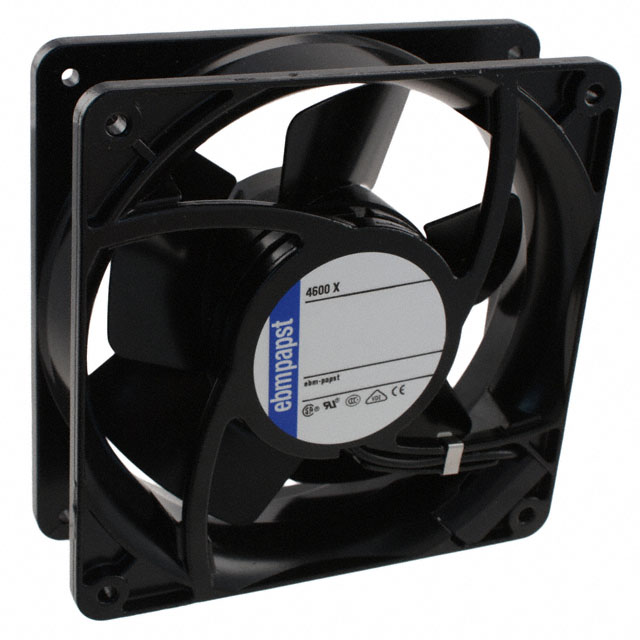

4600X

Active

ebm-papst Inc.

FAN AXIAL 119X38MM 115VAC TERM

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 119X38MM 115VAC TERM

Technical Specifications

Parameters and characteristics for this part

Part	Fan Type	Approval Agency	RPM	Material - Blade	Width [y]	Size / Dimension [y]	Size / Dimension [x]	Noise	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Air Flow	Air Flow	Bearing Type	Termination	Power (Watts)	Material - Frame	Voltage - Rated	Weight	Weight
ebm-papst Inc. 4600Z	Tubeaxial	CE CSA UL VDE	3100 RPM	Metal	38 mm	119 mm	119 mm	45 dB(A)	40000 Hrs	-10 °C	-10 °C	60 °C	60 °C	106 CFM	2.97 mł/min	Sintec	2 Terminals	18 W	Metal	115 VAC
ebm-papst Inc. 4600TA	Tubeaxial		2900 RPM	Metal	37 mm			43 dB	40000 Hrs	-10 °C	-10 °C	50 °C	50 °C	86.5 CFM	2.42 m³/min	Sintec	2 Wire Leads	18 W	Metal	115 VAC	430.01 g	0.948 lb
ebm-papst Inc. 4600ZW	Tubeaxial	CSA UL VDE	3100 RPM	Metal	38 mm	119 mm	119 mm	45 dB(A)	40000 Hrs	-10 °C	-10 °C	60 °C	60 °C	105.9 CFM	2.97 mł/min	Sintec	2 Wire Leads	18 W	Metal	115 VAC
ebm-papst Inc. 4600X	Tubeaxial			Metal	38 mm	119 mm	119 mm	50 dB(A)						106 CFM	2.97 mł/min	Sintec	2 Terminals	18 W	Metal	115 VAC
ebm-papst Inc. 4600XP	Tubeaxial			Metal	38 mm	119 mm	119 mm	50 dB(A)						106 CFM	2.97 mł/min	Sintec	2 Terminals	18 W	Metal	115 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 115VAC Square - 119mm L x 119mm H Sintec 106.0 CFM (2.97m³/min) 2 Terminals
