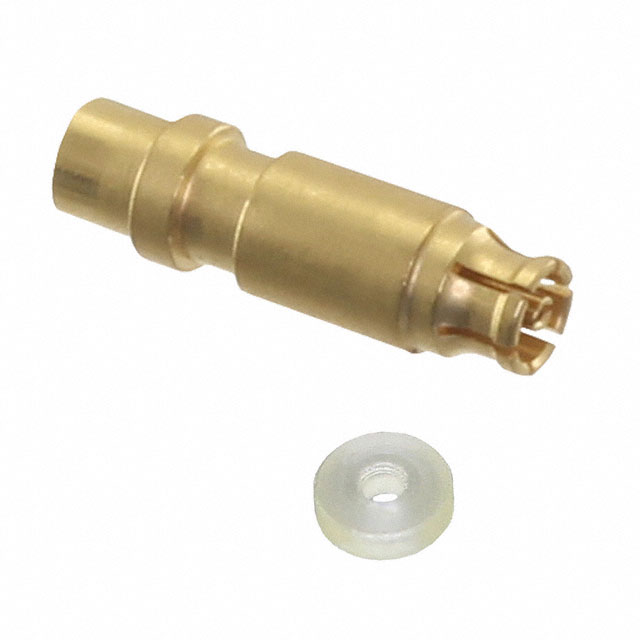

W1K101-270D3
ActiveRosenberger
CONN WSMP JACK STR 50OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
W1K101-270D3
ActiveRosenberger
CONN WSMP JACK STR 50OHM SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | W1K101-270D3 |
|---|---|
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Cable Group | Semi Rigid |
| Cable Group | 0.047 in |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | WSMP |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 100 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
W1K101-27 Series
WSMP Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
