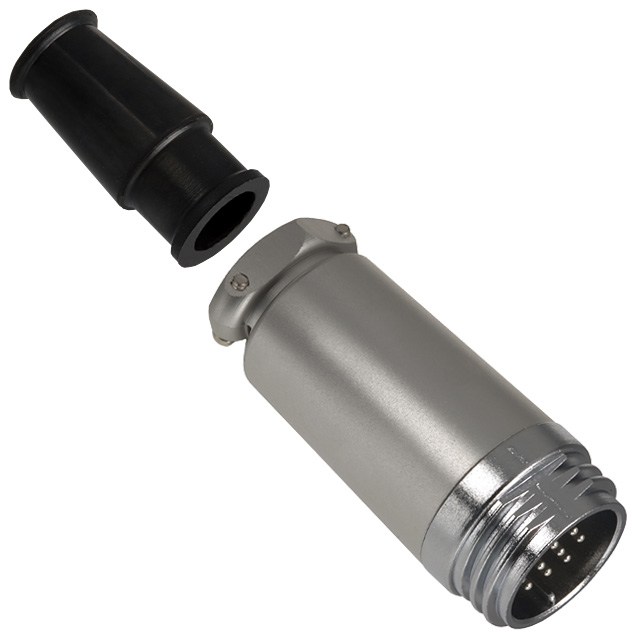

RM-15TJD-12P

Obsolete

Hirose Electric USA, Inc.

CONN JACK MALE 12 POS

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN JACK MALE 12 POS

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Connector Type	Voltage Rating	Mounting Type	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Orientation	Primary Material	Color	Material Flammability Rating	Shell Material	Features	Shell Finish	Shielding	Cable Opening [custom]	Cable Opening [custom]	Contact Finish - Mating	Insert Material	Contact Material	Backshell Material, Plating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Hirose Electric USA, Inc. RM-15TJD-12S	5 A	Female Sockets Jack	350 VAC 490 VDC	Free Hanging (In-Line)	15	-25 °C	85 °C	12	Keyed
Hirose Electric USA, Inc. RM15TJD-10S(81)	5 A	Female Sockets Jack	350 VAC 490 VDC	Free Hanging (In-Line)	15	-25 °C	85 °C	10	Keyed	Metal	Silver	UL94 V-0	Zinc Alloy	Backshell Cable Clamp Strain Relief	Chrome	Unshielded	0.386 in	9.8 mm	Silver	Diallyl Phthalate (DAP)	Copper Alloy	Chrome Zinc Alloy
Hirose Electric USA, Inc. RM15TJD-12P(71)	5 A	Jack Male Pins	350 VAC 490 VDC	Free Hanging (In-Line)	15	-25 °C	85 °C	12	Keyed	Metal	Silver	UL94 V-0	Zinc Alloy	Backshell Cable Clamp Strain Relief	Chrome		0.386 in	9.8 mm	Silver	Diallyl Phthalate (DAP)	Brass	Aluminum Alloy Chrome	157.5 µin	4 µm
Hirose Electric USA, Inc. RM-15TJD-12P	5 A	Jack Male Pins	350 VAC 490 VDC	Free Hanging (In-Line)	15	-25 °C	85 °C	12	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

12 Position Circular Connector Jack, Male Pins
