Q-7103I0005001M
ActiveAmphenol Custom Cable

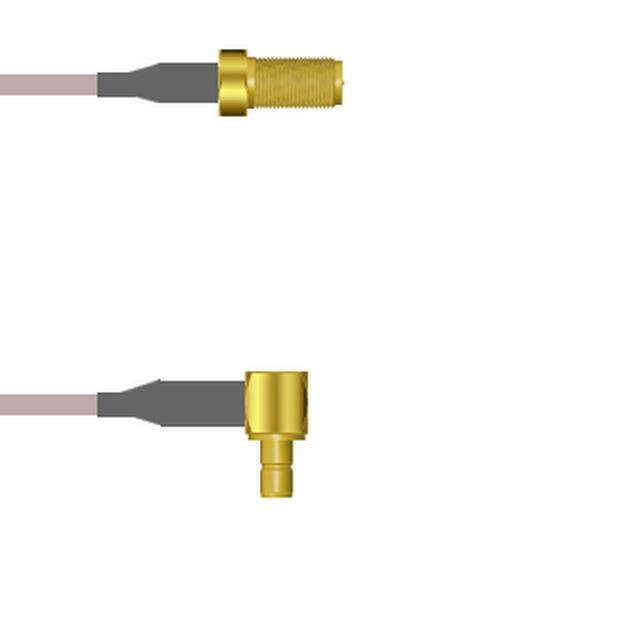

COAX CBL RP-SMA TO SMB 3.3'
Deep-Dive with AI
Search across all available documentation for this part.
Q-7103I0005001M
ActiveAmphenol Custom Cable
COAX CBL RP-SMA TO SMB 3.3'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-7103I0005001M |
|---|---|
| 1st Connector | RP-SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMB Jack, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-316 |
| Color | Copper |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 3 GHz |
| Length | 1 m |
| Length | 3.3 ft |
| Length | 39.4 in |
| Overall Impedance | 50 Ohms |
| Style | RP-SMA to SMB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 87.20 | |
| 25 | $ 85.49 | |||
| 50 | $ 83.79 | |||
| 100 | $ 82.08 | |||
| 250 | $ 80.37 | |||
Description
General part information
Q-7103I0 Series
Cable Assembly Coaxial RP-SMA to SMB RG-316 39.4" (1.0m) 3.3'
Documents
Technical documentation and resources
No documents available
