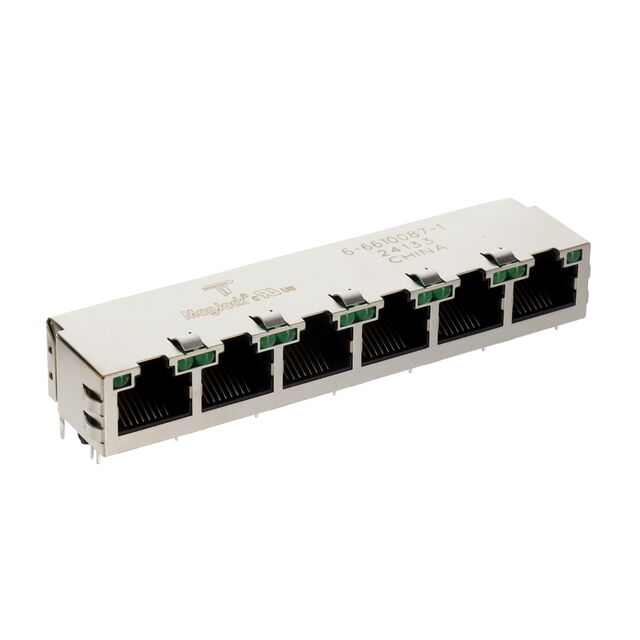

6-6610087-1

Active

TRP Connector B.V.

CONN JACK 6PORT 100 BASE-T

Search across all available documentation for this part.

Active

TRP Connector B.V.

CONN JACK 6PORT 100 BASE-T

Technical Specifications

Parameters and characteristics for this part

Specification	6-6610087-1

Applications	10/100 Base-T, AutoMDIX
Connector Type	RJ45
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Height Above Board [z]	14.1 mm
Height Above Board [z]	0.555 in
Housing Material	Polyethylene Terephthalate (PET), Polyester
LED Color	Green - Green
Mounting Type	Through Hole
Number of Ports	6
Number of Rows	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Orientation	90 °
Shield Material	Brass
Shielding	Shielded, EMI Finger
Tab Direction	Up
Termination	Solder

Part	Shield Material	Contact Material	Mounting Type	Applications	Tab Direction	Height Above Board [z]	Height Above Board [z]	Shielding	Connector Type	Orientation	Housing Material	Contact Finish	Termination	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Number of Ports	LED Color	Operating Temperature [Max]	Operating Temperature [Min]
TRP Connector B.V. 6-6610087-1	Brass	Phosphor Bronze	Through Hole	10/100 Base-T AutoMDIX	Up	14.1 mm	0.555 in	Shielded EMI Finger	RJ45	90 °	Polyester Polyethylene Terephthalate (PET)	Gold	Solder	1	50 µin	1.27 µm	6	Green - Green	70 °C	0 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
