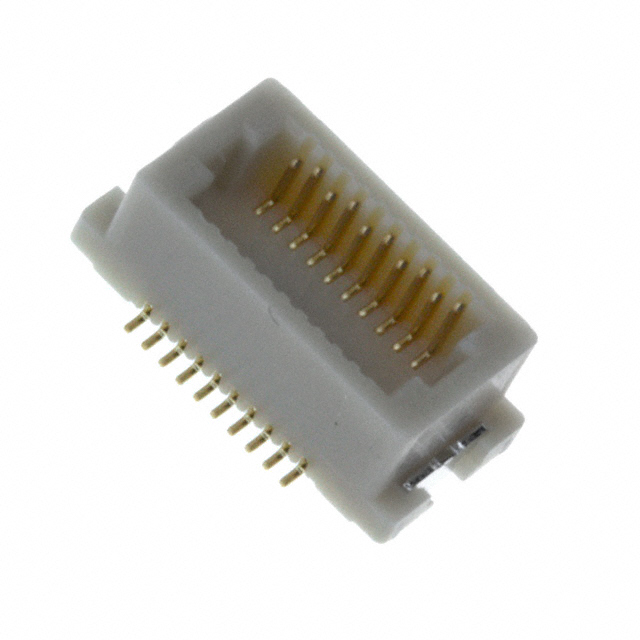

20P-JMDSS-G-1-TF
ActiveJST Sales America Inc.
CONN PLUG 20POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
20P-JMDSS-G-1-TF
ActiveJST Sales America Inc.
CONN PLUG 20POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 20P-JMDSS-G-1-TF |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Features | Solder Retention |
| Mounting Type | Surface Mount |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.69 | |
| 10 | $ 1.29 | |||
| 25 | $ 1.16 | |||
| 50 | $ 1.07 | |||
| 100 | $ 0.99 | |||
| 250 | $ 0.90 | |||
| 500 | $ 0.83 | |||
| Digi-Reel® | 1 | $ 1.69 | ||
| 10 | $ 1.29 | |||
| 25 | $ 1.16 | |||
| 50 | $ 1.07 | |||
| 100 | $ 0.99 | |||
| 250 | $ 0.90 | |||
| 500 | $ 0.83 | |||
| Tape & Reel (TR) | 1500 | $ 0.74 | ||
| 3000 | $ 0.69 | |||
| 4500 | $ 0.67 | |||
| 7500 | $ 0.64 | |||
| 10500 | $ 0.62 | |||
| 15000 | $ 0.60 | |||
Description
General part information
20P-JMDSS Series
20 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
