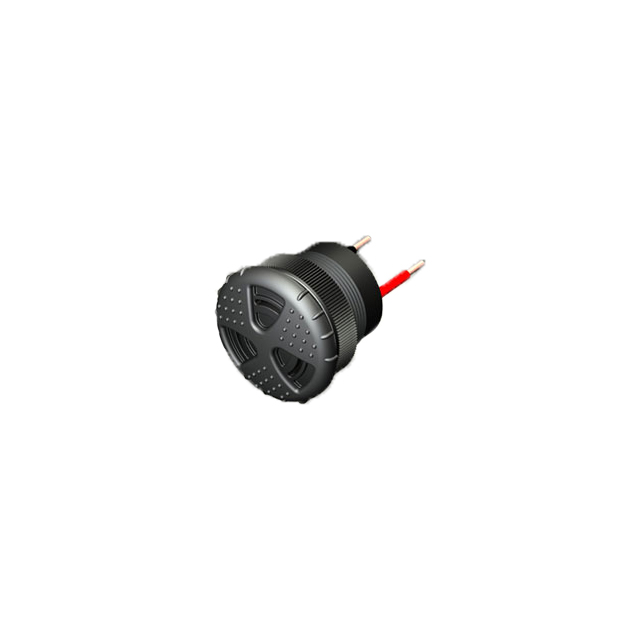

TCH-V86-530-W(F)

Active

Floyd Bell Inc

BUZZER PIEZO 35.81MM PNL MNT

Search across all available documentation for this part.

Active

Floyd Bell Inc

BUZZER PIEZO 35.81MM PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	TCH-V86-530-W(F)

Approval Agency	UR, UL
Current - Supply [Max]	40 mA
Current - Supply [Min]	4 mA
Driver Circuitry	Internally Driven, Indicator
Frequency	2.9 kHz
Height - Seated (Max)	31.75 mm
Height - Seated (Max) [Max]	1.25 in
Ingress Protection	IP68 - Dust Tight, Waterproof
Input Type	DC
Operating Mode	Chime
Port Location	Top
Size / Dimension [diameter]	1.41 in
Size / Dimension [diameter]	35.81 mm
Sound Pressure Level (SPL)	90 dB
Technology	Piezo
Termination	Wire Leads
Voltage Range [Max]	30 V
Voltage Range [Min]	5

Part	Input Type	Sound Pressure Level (SPL)	Operating Mode	Approval Agency	Current - Supply [Max]	Current - Supply [Min]	Termination	Technology	Size / Dimension [diameter]	Size / Dimension [diameter]	Frequency	Height - Seated (Max)	Height - Seated (Max) [Max]	Ingress Protection	Port Location	Driver Circuitry	Voltage Range [Max]	Voltage Range [Min]
Floyd Bell Inc TCH-V86-530-S(M)	DC	90 dB	Chime	UL UR	40 mA	4 mA	Screw Terminal Quick Connect Tab - 0.250" (6.35mm)	Piezo	1.41 in	35.81 mm	2.9 kHz	31.75 mm	1.25 in	IP68 - Dust Tight Waterproof	Top	Indicator Internally Driven	30 V	5
Floyd Bell Inc TCH-V86-530-Q(M)	DC	90 dB	Chime	UL UR	40 mA	4 mA	Quick Connect Tab - 0.250" (6.35mm)	Piezo	1.41 in	35.81 mm	2.9 kHz	31.75 mm	1.25 in	IP68 - Dust Tight Waterproof	Top	Indicator Internally Driven	30 V	5
Floyd Bell Inc TCH-V86-530-W(F)	DC	90 dB	Chime	UL UR	40 mA	4 mA	Wire Leads	Piezo	1.41 in	35.81 mm	2.9 kHz	31.75 mm	1.25 in	IP68 - Dust Tight Waterproof	Top	Indicator Internally Driven	30 V	5
Floyd Bell Inc TCH-V86-530-Q(F)	DC	90 dB	Chime	UL UR	40 mA	4 mA	Quick Connect Tab - 0.250" (6.35mm)	Piezo	1.409 in	35.8 mm	2.9 kHz	31.75 mm	1.25 in	IP68 - Dust Tight Waterproof	Top	Indicator Internally Driven	30 V	5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Buzzers Indicator, Internally Driven Piezo 4 ~ 40mA 2.9kHz 90dB @ 30V, 61cm Panel Mount Wire Leads
