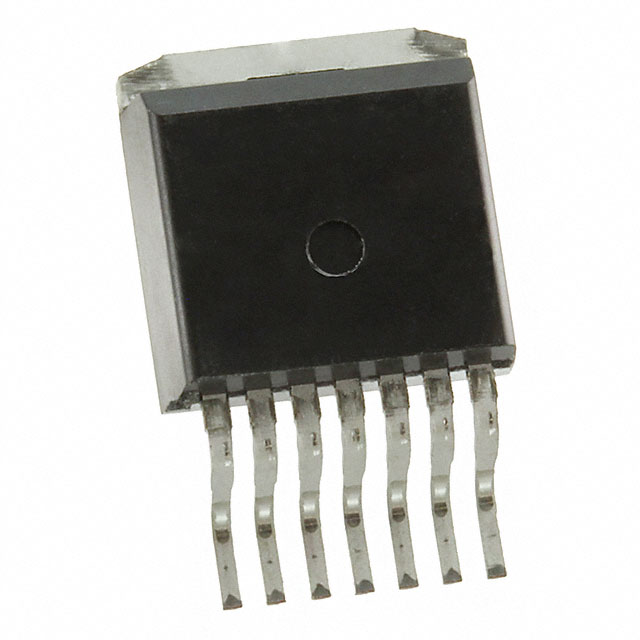

C3M0280090J

Active

Wolfspeed

SICFET N-CH 900V 11A D2PAK-7

Search across all available documentation for this part.

Active

Wolfspeed

SICFET N-CH 900V 11A D2PAK-7

Technical Specifications

Parameters and characteristics for this part

Specification	C3M0280090J

Current - Continuous Drain (Id) @ 25°C	11 A
Drain to Source Voltage (Vdss)	900 V
Drive Voltage (Max Rds On, Min Rds On)	15 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	9.5 nC
Input Capacitance (Ciss) (Max) @ Vds	150 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	D2PAK (7 Leads + Tab), TO-263-8, TO-263CA
Power Dissipation (Max) [Max]	50 W
Rds On (Max) @ Id, Vgs	360 mOhm
Supplier Device Package	TO-263-7
Vgs (Max) [Max]	18 V
Vgs (Max) [Min]	-8 V
Vgs(th) (Max) @ Id	3.5 V

Part	Drive Voltage (Max Rds On, Min Rds On)	Drain to Source Voltage (Vdss)	Vgs(th) (Max) @ Id	Mounting Type	Gate Charge (Qg) (Max) @ Vgs	Operating Temperature [Min]	Operating Temperature [Max]	Input Capacitance (Ciss) (Max) @ Vds	Vgs (Max) [Max]	Vgs (Max) [Min]	Rds On (Max) @ Id, Vgs	Supplier Device Package	Package / Case	Power Dissipation (Max) [Max]	FET Type	Current - Continuous Drain (Id) @ 25°C
Wolfspeed C3M0280090D	15 V	900 V	3.5 V	Through Hole	9.5 nC	-55 °C	150 °C	150 pF	18 V	-8 V	360 mOhm	TO-247-3	TO-247-3	54 W	N-Channel	11.5 A
Wolfspeed C3M0280090J	15 V	900 V	3.5 V	Surface Mount	9.5 nC	-55 °C	150 °C	150 pF	18 V	-8 V	360 mOhm	TO-263-7	D2PAK (7 Leads + Tab) TO-263-8 TO-263CA	50 W	N-Channel	11 A
Wolfspeed C3M0280090J-TR	15 V	900 V	3.5 V	Surface Mount	9.5 nC	-55 °C	150 °C	150 pF	18 V	-8 V	360 mOhm	TO-263-7	D2PAK (7 Leads + Tab) TO-263-8 TO-263CA	50 W	N-Channel	11 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N-Channel 900 V 11A (Tc) 50W (Tc) Surface Mount TO-263-7
