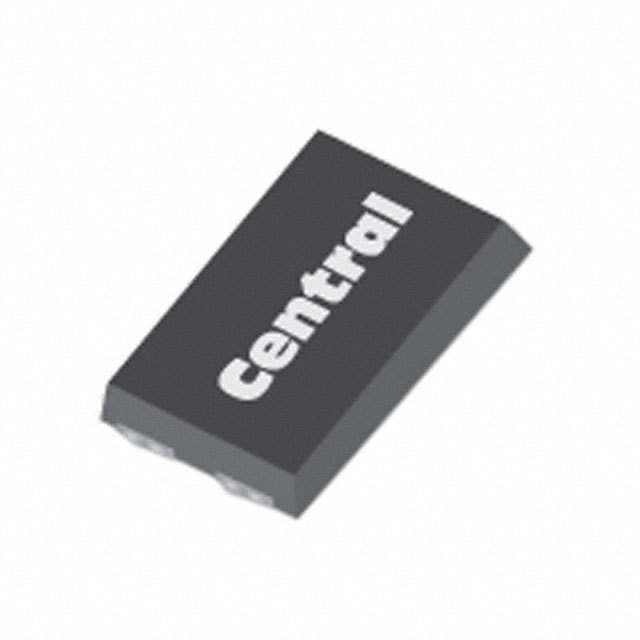

CTLSH4-200M364 TR13 PBFREE

Active

Central Semiconductor Corp

DIODE SCHOTTKY 200V 4A TLM364

Search across all available documentation for this part.

Active

Central Semiconductor Corp

DIODE SCHOTTKY 200V 4A TLM364

Technical Specifications

Parameters and characteristics for this part

Specification	CTLSH4-200M364 TR13 PBFREE

Capacitance @ Vr, F	140 pF
Current - Average Rectified (Io)	4 A
Current - Reverse Leakage @ Vr	1 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Speed	200 mA, 500 ns
Supplier Device Package	TLM364
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	200 V
Voltage - Forward (Vf) (Max) @ If	840 mV

Part	Capacitance @ Vr, F	Supplier Device Package	Mounting Type	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Speed	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
Central Semiconductor Corp CTLSH4-200M364 TR13 PBFREE	140 pF	TLM364	Surface Mount	4 A	200 V	Schottky	200 mA 500 ns	1 µA	840 mV	150 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 200 V 4A Surface Mount TLM364
