OCP-PCT4216/A-TR

Active

Lumex Opto/Components Inc.

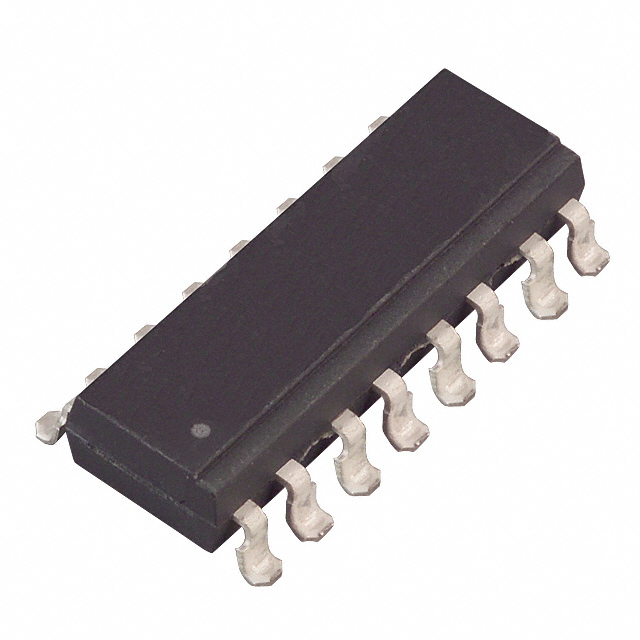

OPTOISOLTR 5KV 4CH TRANS 16-SMD

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

OPTOISOLTR 5KV 4CH TRANS 16-SMD

Technical Specifications

Parameters and characteristics for this part

Specification	OCP-PCT4216/A-TR

Current - DC Forward (If) (Max)	50 mA
Current - Output / Channel	50 mA
Current Transfer Ratio (Max)	600 %
Current Transfer Ratio (Min) [Min]	60 %
Mounting Type	Surface Mount
Number of Channels	4
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-30 ░C
Output Type	1.81 mOhm
Package / Case	16-SMD, Gull Wing
Rise / Fall Time (Typ) [custom]	5 µs
Rise / Fall Time (Typ) [custom]	4 µs
Supplier Device Package	16-SMD
Vce Saturation (Max) [Max]	300 mV
Voltage - Output (Max) [Max]	60 V

Part	Output Type	Voltage - Output (Max) [Max]	Current Transfer Ratio (Min) [Min]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Current - DC Forward (If) (Max)	Current - Output / Channel	Current Transfer Ratio (Max)	Mounting Type	Vce Saturation (Max) [Max]	Number of Channels	Package / Case
Lumex Opto/Components Inc. OCP-PCT4216/A-TR	1.81 mOhm	60 V	60 %	5 µs	4 µs	100 °C	-30 ░C	16-SMD	50 mA	50 mA	600 %	Surface Mount	300 mV	4	16-SMD Gull Wing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Optoisolator Transistor Output 5000Vrms 4 Channel 16-SMD
