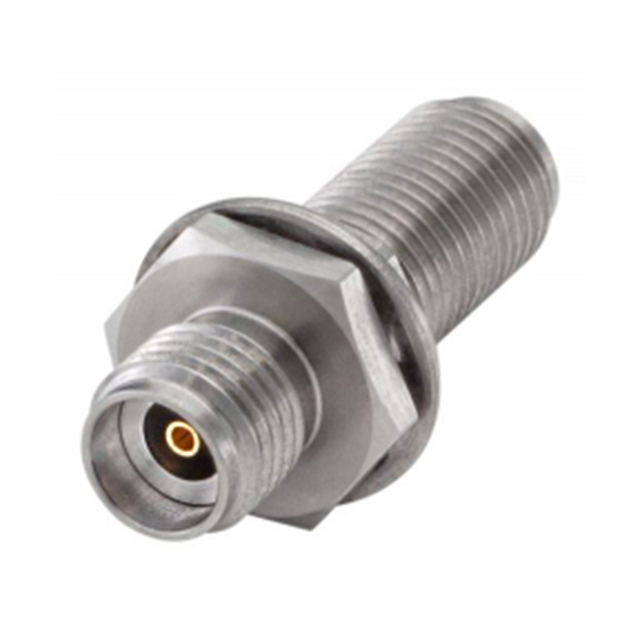

02K621-K00S3
ActiveRosenberger
PRECISION 2.92 ADAPTER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
02K621-K00S3
ActiveRosenberger
PRECISION 2.92 ADAPTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 02K621-K00S3 |
|---|---|
| Adapter Series | RPC-2.92 to RPC-2.92 |
| Adapter Type | Jack to Jack |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | 2.92 mm |
| Convert From (Adapter End) | OS-2.9, Jack, Female Socket |
| Convert To (Adapter End) | 2.92 mm |
| Convert To (Adapter End) | OS-2.9 Jack, Female Socket |
| Dielectric Material | Polystyrene (PS) |
| Frequency - Max [Max] | 40 GHz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.25 dB |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 227.65 | |
| 10 | $ 210.96 | |||
| 25 | $ 203.37 | |||
Description
General part information
02K621 Series
Adapter Coaxial Connector 2.92mm (OS-2.9) Jack, Female Socket To 2.92mm (OS-2.9) Jack, Female Socket 50 Ohms
