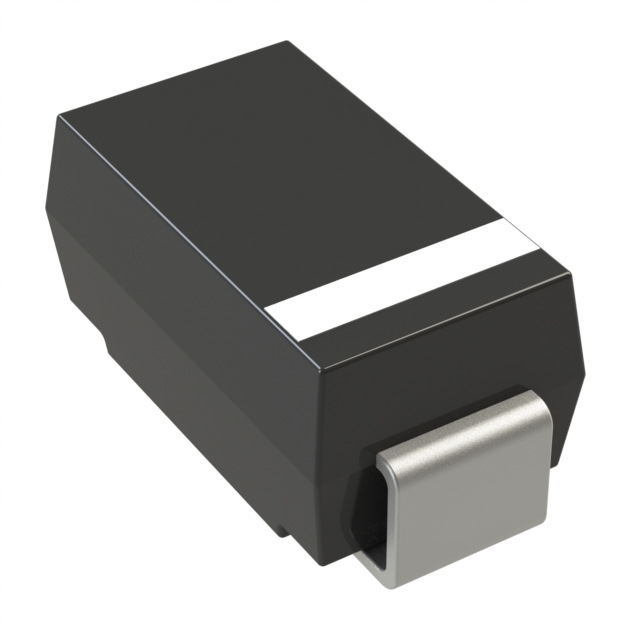

XBS204S19R-G

Active

Torex Semiconductor Ltd

DIODE SCHOTTKY 40V 2A SMA-XG

Search across all available documentation for this part.

Active

Torex Semiconductor Ltd

DIODE SCHOTTKY 40V 2A SMA-XG

Technical Specifications

Parameters and characteristics for this part

Specification	XBS204S19R-G

Capacitance @ Vr, F	180 pF
Current - Average Rectified (Io)	2 A
Current - Reverse Leakage @ Vr	200 µA
Mounting Type	Surface Mount
Operating Temperature - Junction	125 °C
Package / Case	DO-214AC, SMA
Reverse Recovery Time (trr)	51 ns
Speed	200 mA, 500 ns
Supplier Device Package	SMA-XG
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V
Voltage - Forward (Vf) (Max) @ If	540 mV

Part	Voltage - Forward (Vf) (Max) @ If	Reverse Recovery Time (trr)	Speed	Package / Case	Supplier Device Package	Current - Reverse Leakage @ Vr	Capacitance @ Vr, F	Operating Temperature - Junction	Technology	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)
Torex Semiconductor Ltd XBS204S19R-G	540 mV	51 ns	200 mA 500 ns	DO-214AC SMA	SMA-XG	200 µA	180 pF	125 °C	Schottky	Surface Mount	40 V	2 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 40 V 2A Surface Mount SMA-XG
