SN74AUC08RGYRG4

Unknown

Texas Instruments

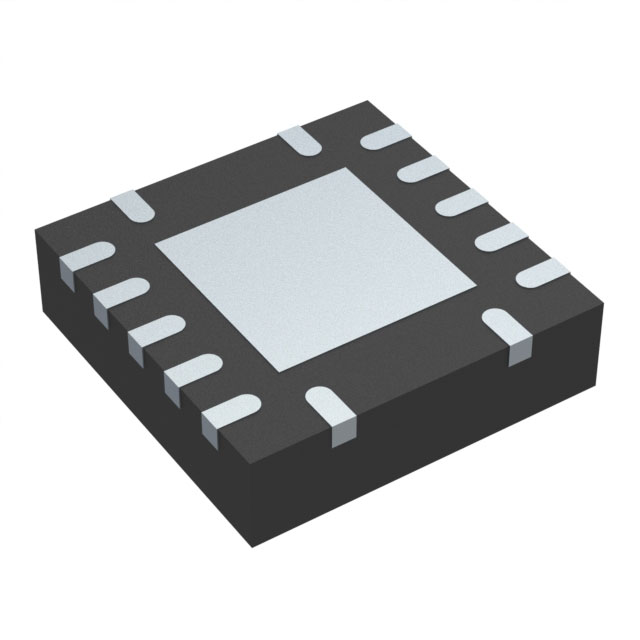

IC GATE AND 4CH 2-INP 14VQFN

Search across all available documentation for this part.

Unknown

Texas Instruments

IC GATE AND 4CH 2-INP 14VQFN

Technical Specifications

Parameters and characteristics for this part

Specification	SN74AUC08RGYRG4

Current - Output High, Low [custom]	9 mA
Current - Output High, Low [custom]	9 mA
Current - Quiescent (Max) [Max]	10 µA
Input Logic Level - High [custom]	1.7 V
Input Logic Level - Low [Max]	0.7 V
Input Logic Level - Low [Min]	0 V
Logic Type	AND Gate
Max Propagation Delay @ V, Max CL [Max]	1.8 ns
Mounting Type	Surface Mount
Number of Circuits	4
Number of Inputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	14-VFQFN Exposed Pad
Supplier Device Package	14-VQFN (3.5x3.5)
Voltage - Supply [Max]	2.7 V
Voltage - Supply [Min]	0.8 V

Part	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Input Logic Level - Low [Min]	Input Logic Level - Low [Max]	Number of Circuits	Current - Quiescent (Max) [Max]	Supplier Device Package	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Max Propagation Delay @ V, Max CL [Max]	Input Logic Level - High [custom]	Logic Type	Package / Case	Number of Inputs
Texas Instruments SN74AUC08RGYRG4	9 mA	9 mA	0 V	0.7 V	4	10 µA	14-VQFN (3.5x3.5)	Surface Mount	2.7 V	0.8 V	85 °C	-40 °C	1.8 ns	1.7 V	AND Gate	14-VFQFN Exposed Pad	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AND Gate IC 4 Channel 14-VQFN (3.5x3.5)
