FRN0.13TB1000
ActiveTechflex

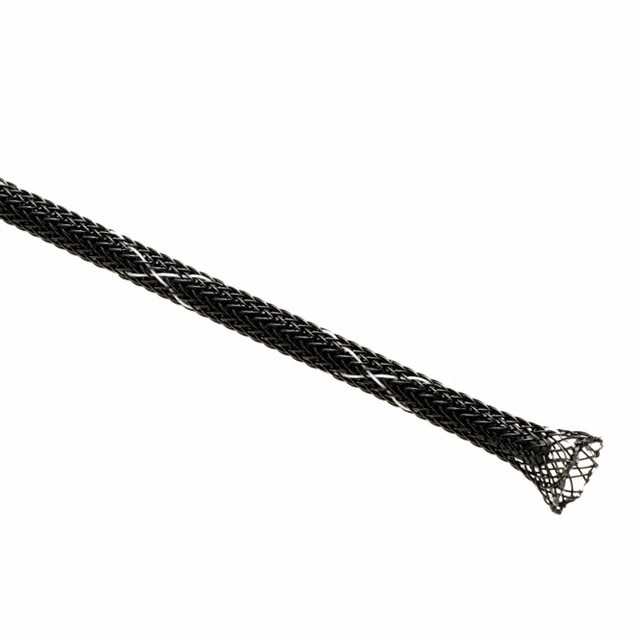

EXPAND SLEEV 1/8"X1000' BLK/WHT
Deep-Dive with AI
Search across all available documentation for this part.
FRN0.13TB1000
ActiveTechflex
EXPAND SLEEV 1/8"X1000' BLK/WHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FRN0.13TB1000 |
|---|---|
| Abrasion Protection | Abrasion and Cut Resistant |
| Color | White, Black |
| Diameter - Inside, Expanded [diameter] | 6.35 mm |
| Diameter - Inside, Expanded [diameter] | 0.25 in |
| Diameter - Inside, Non-Expanded [diameter] | 0.125 in |
| Diameter - Inside, Non-Expanded [diameter] | 3.18 mm |
| Features | Clean Cut, Chemical Resistant |
| Heat Protection | Flame Retardant |
| Length | 1000 ft |
| Length | 304.8 m |
| Liquid Protection | Gasoline Resistant |
| Material | Polyethylene Terephthalate (PET), Halogen Free |
| Material Flammability Rating | UL VW-1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -70 °C |
| Type | Sleeve |
| Type Attributes | Expandable |
| Wall Thickness [custom] | 0.025 in |
| Wall Thickness [custom] | 0.64 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 135.34 | |
| 2 | $ 124.47 | |||
| 3 | $ 118.53 | |||
| 5 | $ 111.44 | |||
| 7 | $ 107.00 | |||
| 10 | $ 102.49 | |||
| 25 | $ 91.77 | |||
| 50 | $ 84.40 | |||
| 100 | $ 78.75 | |||
Description
General part information
FRN0 Series
Sleeve X 1000' (304.80m) Black, White
