NC6BR

Active

TPI (Test Products Int)

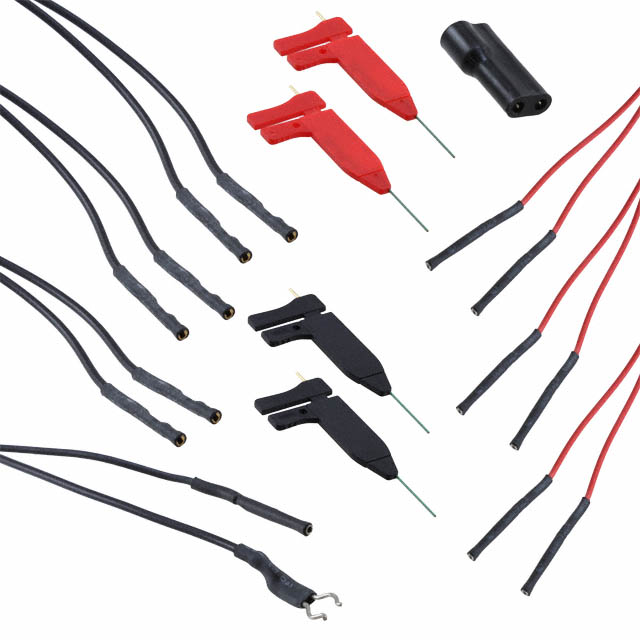

TEST LEAD NANO PINCER TO SOCKET

Search across all available documentation for this part.

Active

TPI (Test Products Int)

TEST LEAD NANO PINCER TO SOCKET

Technical Specifications

Parameters and characteristics for this part

Specification	NC6BR

1st Connector	Nano Pincer
2nd Connector	Round, Socket
2nd Connector [diameter]	0.64 mm
2nd Connector [diameter]	0.025 in
Configuration	Hook to Socket, Grabber
Contents	6 Leads and Clips, Black and Red, 1 Ground, Black
Current Rating (Amps)	300 mA
Voltage - Rated	25 VDC

Part	Contents	Current Rating (Amps)	Configuration	1st Connector	2nd Connector [diameter]	2nd Connector	2nd Connector [diameter]	Voltage - Rated
TPI (Test Products Int) NC6BLUE	1 Ground Black 6 Clips Blue 6 Leads Black and Red	300 mA	Grabber Hook to Socket	Nano Pincer	0.64 mm	Round Socket	0.025 in	25 VDC
TPI (Test Products Int) NC6BR	1 Ground Black 6 Leads and Clips Black and Red	300 mA	Grabber Hook to Socket	Nano Pincer	0.64 mm	Round Socket	0.025 in	25 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Nano Pincer To Socket, Round, 0.025" (0.64mm) Test Lead 25VDC 6 Leads and Clips, Black and Red, 1 Ground, Black
