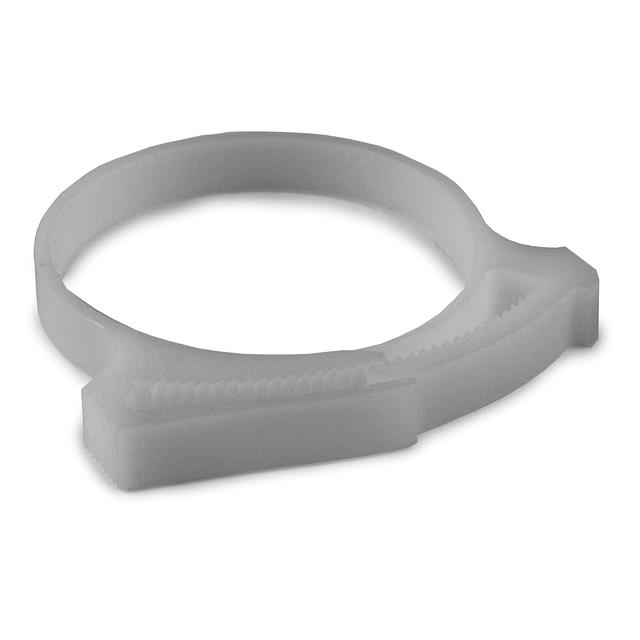

SNP42N10K2

Active

HELLERMANNTYTON

CBL CLIP HOSE WHITE

Search across all available documentation for this part.

Active

HELLERMANNTYTON

CBL CLIP HOSE WHITE

Technical Specifications

Parameters and characteristics for this part

Specification	SNP42N10K2

Color	White
Length [Max]	58.47 mm
Length [Max]	2.302 in
Length [Min]	34.77 mm
Length [Min]	1.369 in
Material	Polyacetal (POM)
Material Flammability Rating	UL94 HB
Material Thickness	0.068 in
Material Thickness	1.73 mm
Opening Size [Max] [z]	51.05 mm
Opening Size [Max] [z]	2.01 in
Opening Size [Min] [z]	43.94 mm
Opening Size [Min] [z]	1.73 in
Type	Clamp, Hose
Type Attributes	Push-Fit
Width	9 mm
Width	0.354 "

Part	Material	Color	Material Flammability Rating	Features	Length [Min]	Length [Max]	Length [Min]	Length [Max]	Type Attributes	Material Thickness	Material Thickness	Type	Opening Size [Max]	Opening Size [Max] [z]	Opening Size [Min] [z]	Opening Size [Min]	Width	Width	Length [Min]	Length [Max]	Opening Size [Max] [z]	Opening Size [Min] [z]
HELLERMANNTYTON SNP42NGHS0C2	Polyamide (PA66) Nylon 6/6 Glass Filled	Black	UL94 HB	Heat Stabilized Impact Resistant	1.383 in	59.06 mm	35.13 mm	2.325 in	Push-Fit	0.069 in	1.75 mm	Clamp Hose	52.17 mm	2.054 in	1.768 in	44.91 mm	0.358 in	9.09 mm
HELLERMANNTYTON SNP42N10K2	Polyacetal (POM)	White	UL94 HB			58.47 mm	34.77 mm		Push-Fit	0.068 in	1.73 mm	Clamp Hose		2.01 in	1.73 in		0.354 "	9 mm	1.369 in	2.302 in	51.05 mm	43.94 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4000	$ 1.22
