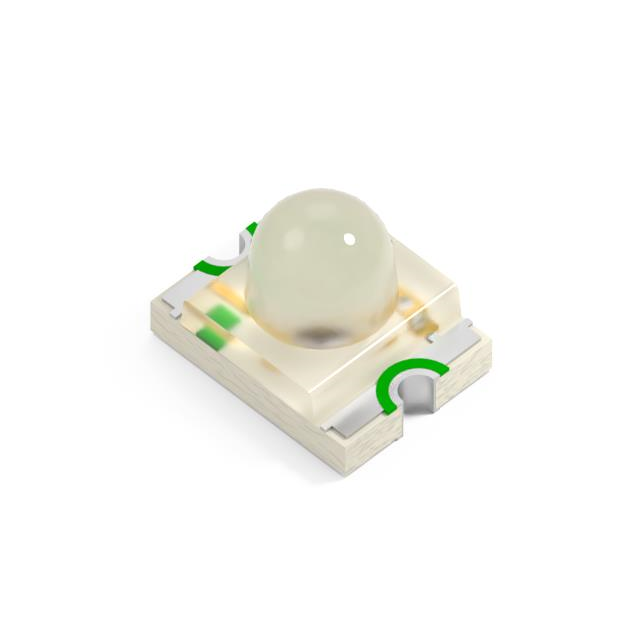

XZTHI78W
ActiveSunLED
3.2X2.4MM INFRARED DOME LENS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZTHI78W
ActiveSunLED
3.2X2.4MM INFRARED DOME LENS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZTHI78W |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 50 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 1209, 3224 Metric |
| Radiant Intensity (Ie) Min @ If [Min] | 1.6 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 20 ° |
| Voltage - Forward (Vf) (Typ) | 1.3 V |
| Wavelength | 880 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.93 | |
| 10 | $ 0.56 | |||
| 100 | $ 0.38 | |||
| 500 | $ 0.30 | |||
| Digi-Reel® | 1 | $ 0.93 | ||
| 10 | $ 0.56 | |||
| 100 | $ 0.38 | |||
| 500 | $ 0.30 | |||
| Tape & Reel (TR) | 1500 | $ 0.27 | ||
| 3000 | $ 0.26 | |||
| 4500 | $ 0.25 | |||
| 7500 | $ 0.24 | |||
| 10500 | $ 0.23 | |||
| 15000 | $ 0.23 | |||
| 37500 | $ 0.22 | |||
Description
General part information
XZTHI78 Series
Infrared (IR) Emitter 880nm 1.3V 50mA 1.6mW/sr @ 20mA 20° 1209 (3224 Metric)
