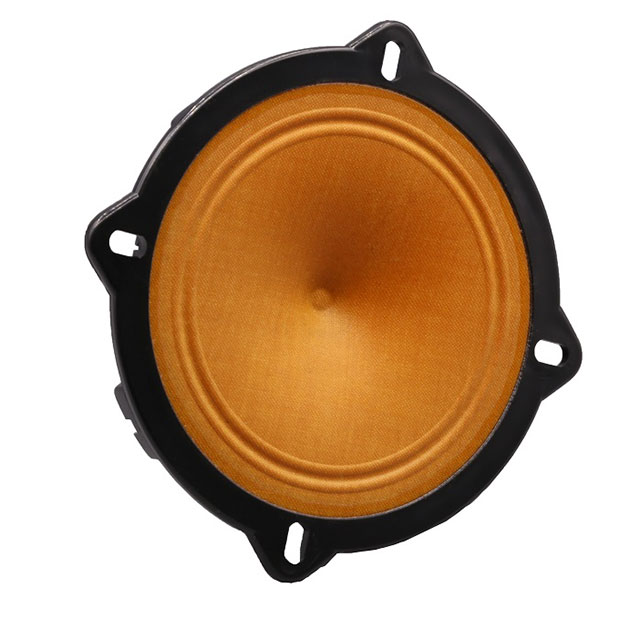

SPK-PZ94
ActiveISL Products International
SPEAKER 82DB PIEZO ROUND
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SPK-PZ94
ActiveISL Products International
SPEAKER 82DB PIEZO ROUND
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SPK-PZ94 |
|---|---|
| Efficiency - dBA | 82 dBA |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 500 Hz |
| Height - Seated (Max) [Max] | 15 mm |
| Height - Seated (Max) [Max] | 0.591 " |
| Material - Cone | Cloth, Phenolic Treated |
| Material - Magnet | Piezo Ceramic |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Power - Max [Max] | 50 W |
| Shape | Round |
| Size / Dimension [diameter] | 3.701 in |
| Size / Dimension [diameter] | 94 mm |
| Technology | Piezo |
| Termination | Fast-On Terminals |
| Type | Full Range |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 45.00 | |
| 16 | $ 39.75 | |||
| 48 | $ 37.50 | |||
| 192 | $ 31.25 | |||
Description
General part information
SPK-PZ Series
Full Range Speaker 500 Hz ~ 20 kHz Round
