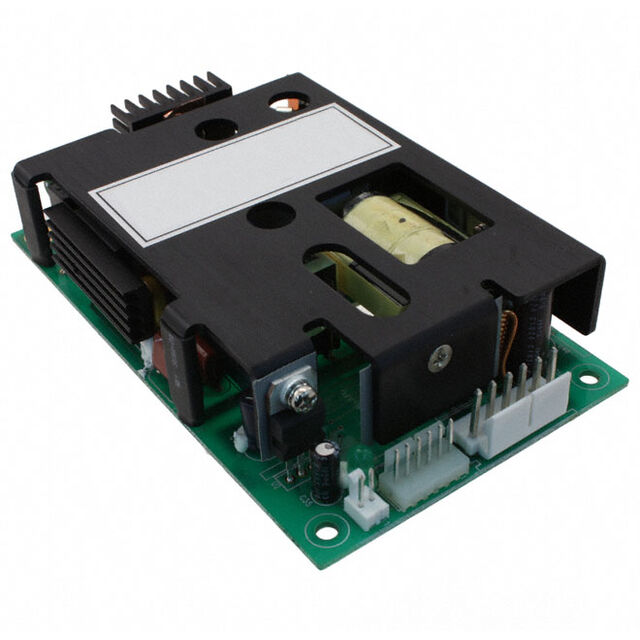

MPB125-2012G

Obsolete

EOS Power India Private Ltd

AC/DC CONVERTER 2X12V 125W

Search across all available documentation for this part.

Obsolete

EOS Power India Private Ltd

AC/DC CONVERTER 2X12V 125W

Technical Specifications

Parameters and characteristics for this part

Specification	MPB125-2012G

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	10.5 A
Current - Output 2	500 mA
Efficiency	86 %
Features	Adjustable Output, Universal Input, Load Sharing, Remote Sense, PFC
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	125 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	1 "
Size / Dimension [z]	25.4 mm
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V
Voltage - Output 2	12 V

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Isolation	Number of Outputs	Current - Output 1	Type	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Current - Output 2	Approval Agency	Voltage - Output 2	Voltage - Output 1	Features	Efficiency	Power (Watts)	Voltage - Output 3	Current - Output 4	Current - Output 3
EOS Power India Private Ltd MPB125-2005D	Chassis Mount	70 °C	0 °C	ITE (Commercial)	3000 V	2	25 A	Open Frame	90 VAC	264 VAC	3 "	1.25 "	76.2 mm	5 in	31.8 mm	127 mm	500 mA	CE	12 V	5 V	PFC Remote Sense Universal Input	73 %
EOS Power India Private Ltd MPB125-2024G	Chassis Mount	70 °C	-20 °C	ITE (Commercial)	3000 V	2	5.2 A	Open Frame	90 VAC	264 VAC	3 "	1 "	76.2 mm	5 in	25.4 mm	127 mm	500 mA	CE	12 V	24 V	Adjustable Output Load Sharing PFC Remote Sense Universal Input	90 %	125 W
EOS Power India Private Ltd MPB125-2012G	Chassis Mount	70 °C	-20 °C	ITE (Commercial)	3000 V	2	10.5 A	Open Frame	90 VAC	264 VAC	3 "	1 "	76.2 mm	5 in	25.4 mm	127 mm	500 mA	CE	12 V	12 V	Adjustable Output Load Sharing PFC Remote Sense Universal Input	86 %	125 W
EOS Power India Private Ltd MPB125-4350RG	Chassis Mount	70 °C	-20 °C	ITE (Commercial)	3000 V	4	10 A	Open Frame	90 VAC	264 VAC	3 "	1 "	76.2 mm	5 in	25.4 mm	127 mm	15 A	CE	5 V	3.3 V	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Universal Input	83 %	125 W	12 V	500 mA	5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 2 Output 12V 12V 90 ~ 264 VAC Input
