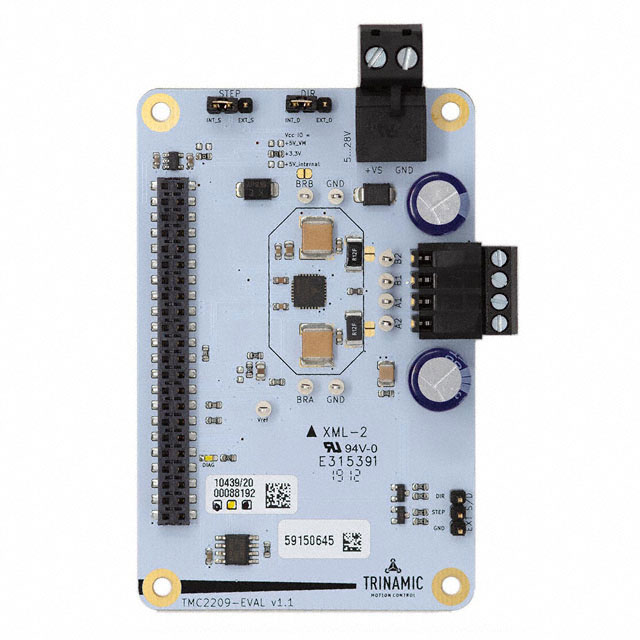

TMC2209-EVAL

Active

Analog Devices Inc./Maxim Integrated

EVAL BOARD FOR TMC2209

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

EVAL BOARD FOR TMC2209

Technical Specifications

Parameters and characteristics for this part

Specification	TMC2209-EVAL

Contents	Board(s)
Function	Motor Controller/Driver
Primary Attributes	Motors (Stepper)
Secondary Attributes	Graphical User Interface (GUI)
Supplied Contents	Board(s)
Type	Power Management
Utilized IC / Part	TMC2209

Part	Mounting Type	Package / Case	Supplier Device Package	Motor Type - Stepper	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Step Resolution [Max]	Step Resolution [Min]	Applications	Voltage - Load [Max]	Voltage - Load [Min]	Function	Technology	Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Output	Utilized IC / Part	Supplied Contents	Contents	Type	Primary Attributes	Secondary Attributes
Analog Devices Inc./Maxim Integrated TMC2209-LA	Surface Mount	28-VFQFN Exposed Pad	28-QFN (5x5)	Bipolar	Step/Direction	-40 °C	125 ¯C	1	0.00390625	Automation Control	29 V	5.5 V	Driver - Fully Integrated Control and Power Stage	Power MOSFET	Step/Direction UART	4.8 V	5.25 V	2 A
Analog Devices Inc./Maxim Integrated TMC2209-EVAL-KIT													Motor Controller/Driver						TMC2209	Board(s)	Board(s)	Power Management	Motors (Stepper)	Graphical User Interface (GUI)
Analog Devices Inc./Maxim Integrated TMC2209-LA-T	Surface Mount	28-VFQFN Exposed Pad	28-QFN (5x5)	Bipolar	Step/Direction	-40 °C	125 ¯C	1	0.00390625	Automation Control	29 V	5.5 V	Driver - Fully Integrated Control and Power Stage	Power MOSFET	Step/Direction UART	4.8 V	5.25 V	2 A
Analog Devices Inc./Maxim Integrated TMC2209-EVAL													Motor Controller/Driver						TMC2209	Board(s)	Board(s)	Power Management	Motors (Stepper)	Graphical User Interface (GUI)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 67.86

General part information

TMC2209 Motor Controller/Driver Power Management Evaluation Board
