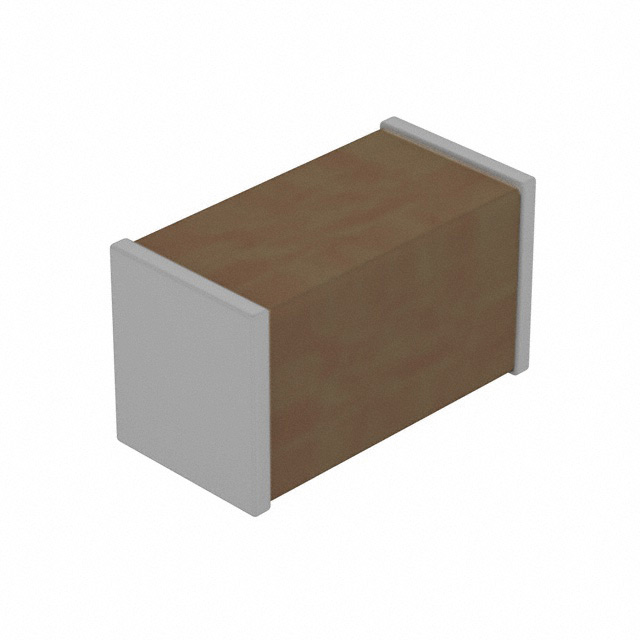

0402BB473K160NGT

Active

Knowles Johanson Manufacturing

CAP CER 0.047UF 16V X7R 0402

Deep-Dive with AI

Search across all available documentation for this part.

0402BB473K160NGT

Active

Knowles Johanson Manufacturing

CAP CER 0.047UF 16V X7R 0402

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0402BB473K160NGT

Applications	General Purpose
Features	Gold Flash Termination
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0402 (1005 Metric)
Size / Dimension [x]	0.04 "
Size / Dimension [x]	1.02 mm
Size / Dimension [y]	0.02 in
Size / Dimension [y]	0.51 mm
Temperature Coefficient	X7R
Thickness (Max)	0.61 mm
Thickness (Max) [Max]	0.024 in
Tolerance	10 %
Voltage - Rated [custom]	16 V

0402BB Series

Part	Applications	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Features	Capacitance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Thickness (Max) [Max]	Thickness (Max)	Temperature Coefficient	Voltage - Rated	Voltage - Rated [custom]
Knowles Johanson Manufacturing 0402BB103K500NGT	General Purpose	MLCC Surface Mount	-55 °C	125 °C	10 %	Gold Flash Termination	10000 pF	0.02 in	0.04 "	1.02 mm	0.51 mm	0402 (1005 Metric)	0.024 in	0.61 mm	X7R	50 VDC
Knowles Johanson Manufacturing 0402BB333K250YT	General Purpose	MLCC Surface Mount	-55 °C	125 °C	10 %		0.033 çF	0.02 in	0.04 "	1.02 mm	0.51 mm	0402 (1005 Metric)	0.024 in	0.61 mm	X7R	25 VDC
Knowles Johanson Manufacturing 0402BB223K500YT	General Purpose	MLCC Surface Mount	-55 °C	125 °C	10 %		0.022 µF	0.02 in	0.04 "	1.02 mm	0.51 mm	0402 (1005 Metric)	0.024 in	0.61 mm	X7R	50 VDC
Knowles Johanson Manufacturing 0402BB333K250NGT	General Purpose	MLCC Surface Mount	-55 °C	125 °C	10 %	Gold Flash Termination	0.033 çF	0.02 in	0.04 "	1.02 mm	0.51 mm	0402 (1005 Metric)	0.024 in	0.61 mm	X7R	25 VDC
Knowles Johanson Manufacturing 0402BB223K500NGT	General Purpose	MLCC Surface Mount	-55 °C	125 °C	10 %	Gold Flash Termination	0.022 µF	0.02 in	0.04 "	1.02 mm	0.51 mm	0402 (1005 Metric)	0.024 in	0.61 mm	X7R	50 VDC
Knowles Johanson Manufacturing 0402BB473K160NGT	General Purpose	MLCC Surface Mount	-55 °C	125 °C	10 %	Gold Flash Termination		0.02 in	0.04 "	1.02 mm	0.51 mm	0402 (1005 Metric)	0.024 in	0.61 mm	X7R		16 V
Knowles Johanson Manufacturing 0402BB104K160NGT	General Purpose	MLCC Surface Mount	-55 °C	125 °C	10 %	Gold Flash Termination	100000 pF	0.02 in	0.04 "	1.02 mm	0.51 mm	0402 (1005 Metric)	0.024 in	0.61 mm	X7R		16 V
Knowles Johanson Manufacturing 0402BB473K160YT	General Purpose	MLCC Surface Mount	-55 °C	125 °C	10 %			0.02 in	0.04 "	1.02 mm	0.51 mm	0402 (1005 Metric)	0.024 in	0.61 mm	X7R		16 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.03
		10	$ 1.56
	Digi-Reel®	1	$ 2.03
		10	$ 1.56

Description

General part information

0402BB Series

0.047 µF ±10% 16V Ceramic Capacitor X7R 0402 (1005 Metric)

Documents

Technical documentation and resources

No documents available
