4N25-360E

Active

Broadcom Limited

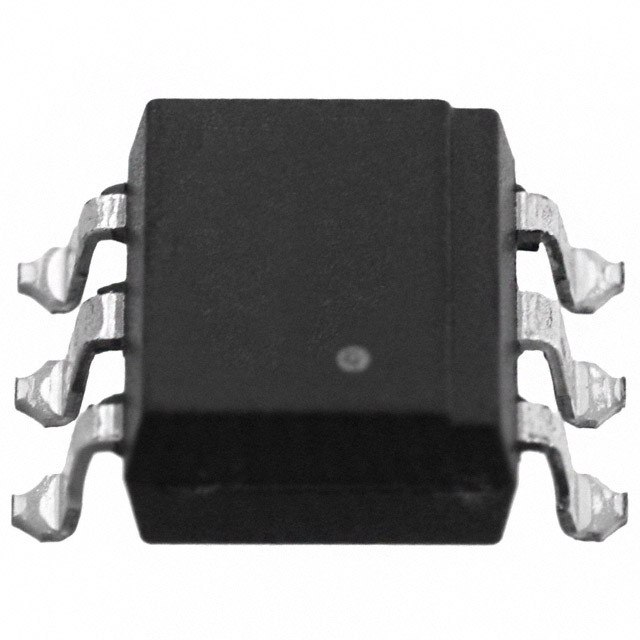

OPTOISO 2.5KV TRANS W/BASE 6SMD

Search across all available documentation for this part.

Active

Broadcom Limited

OPTOISO 2.5KV TRANS W/BASE 6SMD

Technical Specifications

Parameters and characteristics for this part

Specification	4N25-360E

Current - DC Forward (If) (Max) [Max]	80 mA
Current - Output / Channel	100 mA
Current Transfer Ratio (Min) [Min]	20 %
Input Type	DC
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-55 °C
Package / Case	6-SMD, Gull Wing
Rise / Fall Time (Typ) [custom]	3 µs
Rise / Fall Time (Typ) [custom]	3 µs
Supplier Device Package	6-SMD
Vce Saturation (Max) [Max]	500 mV
Voltage - Isolation	2500 Vrms
Voltage - Output (Max) [Max]	30 V

Part	Vce Saturation (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Current - Output / Channel	Current - DC Forward (If) (Max) [Max]	Supplier Device Package	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Voltage - Output (Max) [Max]	Input Type	Number of Channels	Current Transfer Ratio (Min) [Min]	Mounting Type	Package / Case	Package / Case	Package / Case
Broadcom Limited 4N25-500E	500 mV	6-SMD Gull Wing	100 °C	-55 °C	2500 Vrms	100 mA	80 mA	6-SMD	3 µs	3 µs	30 V	DC	1	20 %	Surface Mount
Broadcom Limited 4N25-060E	500 mV	6-DIP	100 °C	-55 °C	2500 Vrms	100 mA	80 mA	6-DIP	3 µs	3 µs	30 V	DC	1	20 %	Through Hole	0.3 in	7.62 mm
Broadcom Limited 4N25-000E	500 mV	6-DIP	100 °C	-55 °C	2500 Vrms	100 mA	80 mA	6-DIP	3 µs	3 µs	30 V	DC	1	20 %	Through Hole	0.3 in	7.62 mm
Broadcom Limited 4N25-300E	500 mV	6-SMD Gull Wing	100 °C	-55 °C	2500 Vrms	100 mA	80 mA	6-SMD	3 µs	3 µs	30 V	DC	1	20 %	Surface Mount
Broadcom Limited 4N25-360E	500 mV	6-SMD Gull Wing	100 °C	-55 °C	2500 Vrms	100 mA	80 mA	6-SMD	3 µs	3 µs	30 V	DC	1	20 %	Surface Mount
Broadcom Limited 4N25-W00E	500 mV	6-DIP	100 °C	-55 °C	2500 Vrms	100 mA	80 mA	6-DIP	3 µs	3 µs	30 V	DC	1	20 %	Through Hole		10.16 mm	10.16 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	17875	$ 0.22

General part information

Optoisolator Transistor with Base Output 2500Vrms 1 Channel 6-SMD
