0190090001 - 019009000x

0190090001

Active
Molex

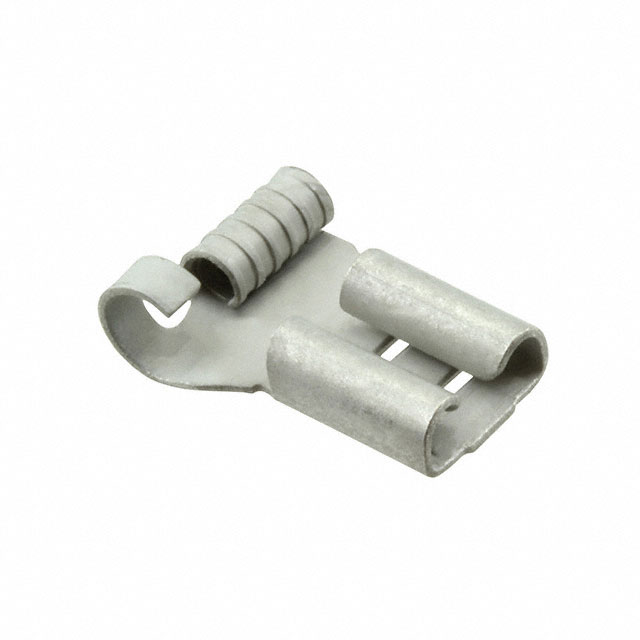

CONN QC RCPT 18-22AWG 0.250

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet
0190090001 - 019009000x

0190090001

Active
Molex

CONN QC RCPT 18-22AWG 0.250

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet

Technical Specifications

Parameters and characteristics for this part

Specification0190090001
Contact FinishTin
Contact MaterialBrass
GenderFemale
InsulationNon-Insulated
Mounting TypeFree Hanging (In-Line), Right Angle
Tab Length7.75 mm
Tab Length0.305 in
Tab Thickness0.032 in
Tab Thickness0.81 mm
Tab Width6.35 mm
Tab Width0.25 in
Terminal TypeFlag, Angled - 90°
TerminationCrimp
Wire Gauge [Max]22 AWG
Wire Gauge [Min]17.5 AWG

019009 Series

PartInsulationTab ThicknessTab ThicknessTerminationTab WidthTab WidthContact MaterialTab LengthTab LengthMounting TypeTerminal TypeContact FinishGenderInsulation Diameter [diameter]Insulation Diameter [diameter]Wire Gauge [Max]Wire Gauge [Min]Insulation Diameter
Molex
0190090008
Non-Insulated
0.02 "
0.51 mm
Crimp
4.75 mm
0.187 in
Brass
6.35 mm
0.25 in
Free Hanging (In-Line)
Right Angle
Angled - 90°
Flag
Electro-Tin
Female
0.135 in
3.43 mm
22 AWG
17.5 AWG
Molex
0190090003
Non-Insulated
0.02 "
0.51 mm
Crimp
4.75 mm
0.187 in
Brass
6.35 mm
0.25 in
Free Hanging (In-Line)
Right Angle
Angled - 90°
Flag
Electro-Tin
Female
0.135 in
3.43 mm
22 AWG
17.5 AWG
Molex
0190090009
Non-Insulated
0.032 in
0.81 mm
Crimp
4.75 mm
0.187 in
Brass
6.35 mm
0.25 in
Free Hanging (In-Line)
Right Angle
Angled - 90°
Flag
Tin
Female
0.135 in
3.43 mm
22 AWG
17.5 AWG
Molex
0190090016
Non-Insulated
0.032 in
0.81 mm
Crimp
6.35 mm
0.25 in
Brass
7.75 mm
0.305 in
Free Hanging (In-Line)
Right Angle
Angled - 90°
Flag
Tin
Female
0.145 "
3.68 mm
Molex
0190090017
Non-Insulated
0.02 "
0.51 mm
Crimp
4.75 mm
0.187 in
Brass
6.35 mm
0.25 in
Free Hanging (In-Line)
Right Angle
Angled - 90°
Flag
Electro-Tin
Female
0.145 "
3.68 mm
Molex
0190090012
Non-Insulated
0.02 "
0.51 mm
Crimp
4.75 mm
0.187 in
Brass
6.35 mm
0.25 in
Free Hanging (In-Line)
Right Angle
Angled - 90°
Flag
Tin
Female
0.145 "
3.68 mm
Molex
0190090001
Non-Insulated
0.032 in
0.81 mm
Crimp
6.35 mm
0.25 in
Brass
7.75 mm
0.305 in
Free Hanging (In-Line)
Right Angle
Angled - 90°
Flag
Tin
Female
22 AWG
17.5 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 0.15
10$ 0.12
100$ 0.09
1000$ 0.07
3000$ 0.07

Description

General part information

019009 Series

0.250" (6.35mm) Quick Connect Female 18-22 AWG Crimp Connector Non-Insulated

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet
