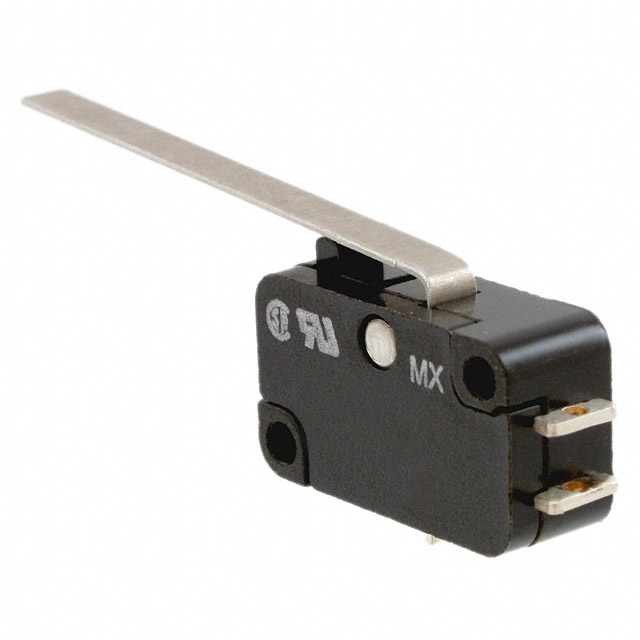

V3L-2436
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 5A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | V3L-2436 |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPDT |
| Current Rating (Amps) | 5 A |
| Differential Travel | 1.4 mm |
| Differential Travel | 0.055 in |
| Mounting Type | Chassis Mount |
| Operating Force | 198 gf |
| Operating Position | 0.6 in |
| Operating Position | 15.2 mm |
| Overtravel | 0.16 in |
| Overtravel | 4.06 mm |
| Pretravel | 0.2 in |
| Pretravel | 5.1 mm |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 44.53 | |
| 10 | $ 36.90 | |||
| 25 | $ 34.24 | |||
| 50 | $ 32.36 | |||
| 100 | $ 30.57 | |||
Description
General part information
V3L-24 Series
Switch SPDT Chassis Mount
