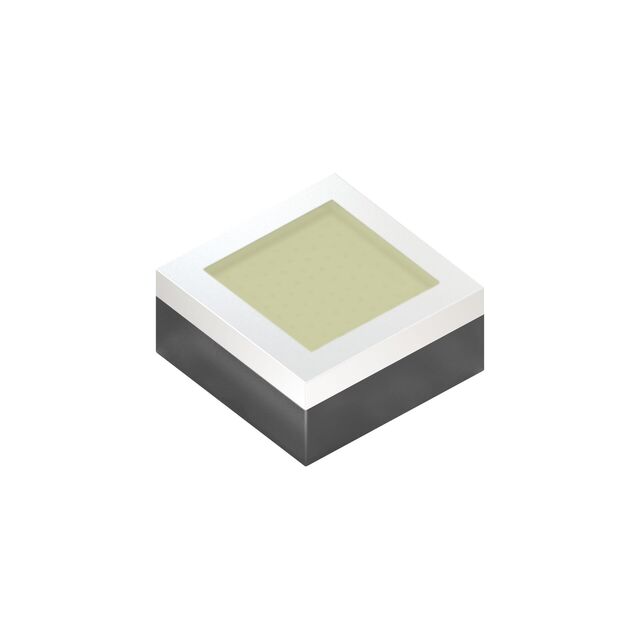

GC VJLPL1.13-KQKS-V2V3-1-350-R18
Activeams-OSRAM USA INC.
LED OSLON PURE 1414 CYAN 488NM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GC VJLPL1.13-KQKS-V2V3-1-350-R18
Activeams-OSRAM USA INC.
LED OSLON PURE 1414 CYAN 488NM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GC VJLPL1.13-KQKS-V2V3-1-350-R18 |
|---|---|
| Color | Cyan |
| Current - Max [Max] | 1 A |
| Current - Test | 350 mA |
| Height - Seated (Max) [Max] [z] | 0.037 " |
| Height - Seated (Max) [Max] [z] | 0.95 mm |
| Lumens/Watt @ Current - Test | 89 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 0505 |
| Package / Case | 1313 Metric |
| Size / Dimension [x] | 0.055 in |
| Size / Dimension [x] | 1.4 mm |
| Size / Dimension [y] | 0.055 in |
| Size / Dimension [y] | 1.4 mm |
| Thermal Resistance of Package | 6.4 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.74 V |
| Wavelength | 488 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.52 | |
| 10 | $ 0.96 | |||
| 100 | $ 0.71 | |||
| 500 | $ 0.65 | |||
| Digi-Reel® | 1 | $ 1.52 | ||
| 10 | $ 0.96 | |||
| 100 | $ 0.71 | |||
| 500 | $ 0.65 | |||
| Tape & Reel (TR) | 1000 | $ 0.54 | ||
| 2000 | $ 0.51 | |||
| 5000 | $ 0.50 | |||
| 10000 | $ 0.49 | |||
Description
General part information
GC VJLPL1.13 Series
LED Lighting Color OSLON® Pure 1414 Cyan 488nm (485nm ~ 500nm) 0505 (1313 Metric)
Documents
Technical documentation and resources
