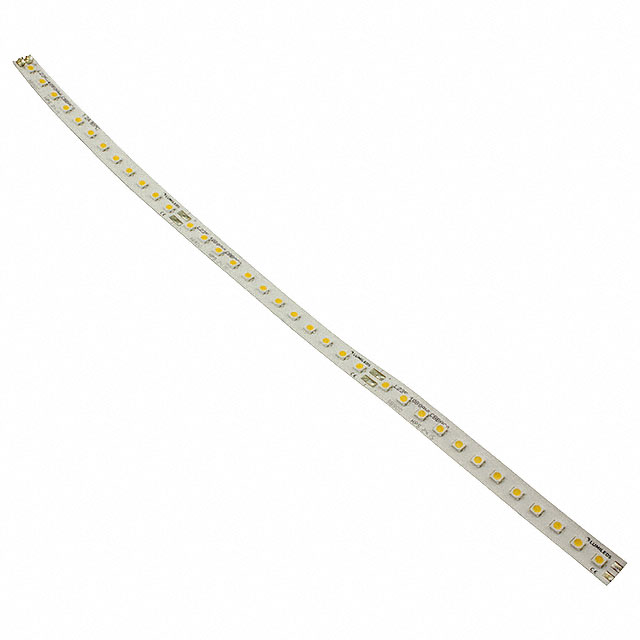

L235-4080AHLCBBAC0

Obsolete

Lumileds

LED MOD LUXEON WH LNR STR 4000K

Search across all available documentation for this part.

Obsolete

Lumileds

LED MOD LUXEON WH LNR STR 4000K

Technical Specifications

Parameters and characteristics for this part

Specification	L235-4080AHLCBBAC0

CCT (K)	4000 K
Color	Neutral, White
Configuration	Linear Light Strip, Flexible
CRI (Color Rendering Index)	80
Current - Max [Max]	1.2 A
Current - Test	600 mA
Height [z]	1.23 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	147 lm/W
Luminous Flux @ Current/Temperature	1584 lm
Size / Dimension	100.00mm L per Segment
Size / Dimension [x]	300 mm
Size / Dimension [y]	10 mm
Type	LED Module
Voltage - Forward (Vf) (Typ)	18 V

Part	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Color	Lens Type	Luminous Flux @ Current/Temperature	Height [z]	Current - Test	CCT (K)	Configuration	Size / Dimension [y]	Size / Dimension [x]	Type	Current - Max [Max]	CRI (Color Rendering Index)	Size / Dimension
Lumileds L235-4080AMLF5WAD0	147 lm/W	21 V	Neutral White	Flat	2464 lm	1.23 mm	800 mA	4000 K	Flexible Linear Light Strip	5.25 mm	525.4 mm	LED Module	1.6 A	80
Lumileds L235-4080AHLCBBAC0	147 lm/W	18 V	Neutral White	Flat	1584 lm	1.23 mm	600 mA	4000 K	Flexible Linear Light Strip	10 mm	300 mm	LED Module	1.2 A	80	100.00mm L per Segment

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module LUXEON XF-3535L White, Neutral Linear Light Strip, Flexible
