1617R 0101000

Active

Belden Inc.

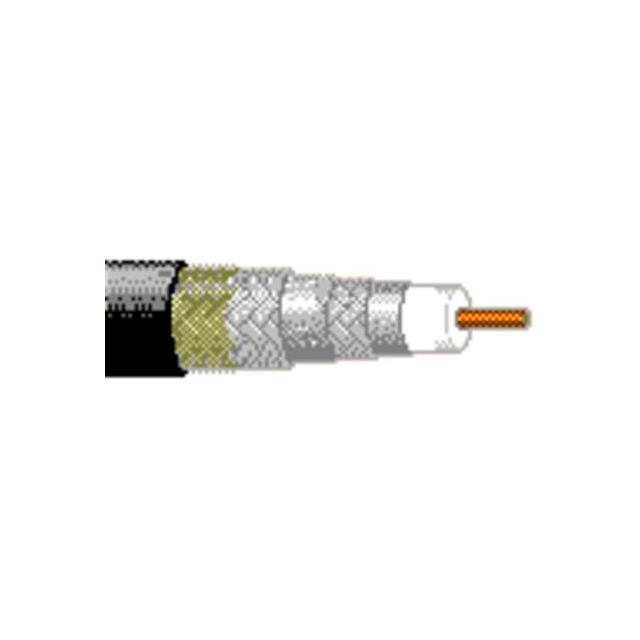

CBL COAX RISER RG-11 14AWG 1000'

Search across all available documentation for this part.

Active

Belden Inc.

CBL COAX RISER RG-11 14AWG 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	1617R 0101000

Cable Group	RG-11
Cable Type	Coaxial - Riser
Conductor Material	Steel, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.28 in
Dielectric Diameter [diameter]	7.11 mm
Dielectric Material	Foam Polyethylene (FPE)
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	10.34 mm
Jacket (Insulation) Diameter [diameter]	0.407 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Coverage	100 %, 60 %, 40 %
Shield Material	Aluminum
Shield Type	Foil, Braid
VoP, Velocity of Propagation	83
Wire Gauge	13.5 AWG

Part	Shield Coverage	Impedance	Dielectric Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Conductor Material	Jacket (Insulation) Material	Cable Group	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Shield Material	Conductor Strand	VoP, Velocity of Propagation	Cable Type	Wire Gauge	Shield Type	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]
Belden Inc. 1617R 0101000	40 % 60 % 100 %	75 Ohms	Foam Polyethylene (FPE)	10.34 mm	0.407 "	Black	Copper Coated Steel	Poly-Vinyl Chloride (PVC)	RG-11	0.28 in	7.11 mm	Aluminum	Solid	83	Coaxial - Riser	13.5 AWG	Braid Foil	304.8 m	1000 ft	-40 °C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.70

General part information

Coaxial - Riser Cable 14 AWG RG-11 1000.0' (304.80m) 75 Ohms
