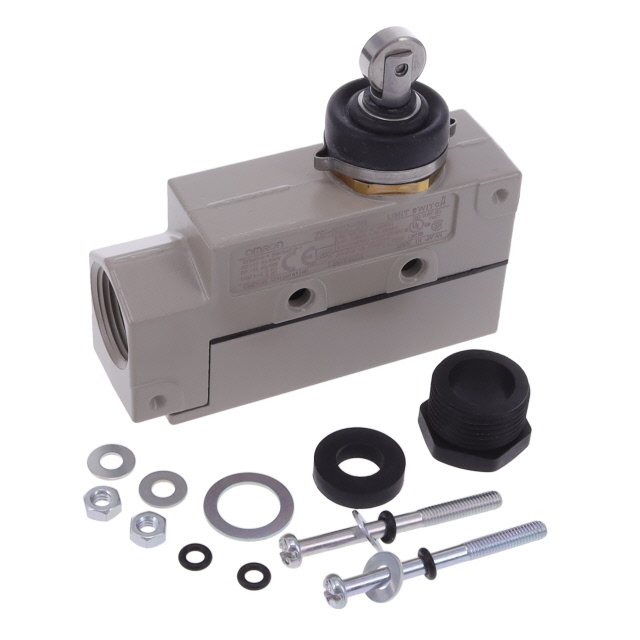

ZE-N22-2G

Active

Omron Electronics Inc-EMC Div

SWITCH LIMIT SPDT 15A 125V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH LIMIT SPDT 15A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	ZE-N22-2G

Actuator Type	Roller Plunger
Circuit	SPDT
Current Rating (Amps)	10 A, 15 A
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Chassis Mount
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-10 °C
Switch Function	On-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Actuator Type	Mounting Type	Termination Style	Switch Function	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Ingress Protection	Current Rating (Amps)	Voltage Rating - AC
Omron Electronics Inc-EMC Div ZE-N22-2G	Roller Plunger	Chassis Mount	Screw Terminal	On-Mom	30 V	80 C	-10 °C	SPDT	IP65 - Dust Tight Water Resistant	10 A 15 A	125 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Chassis Mount
