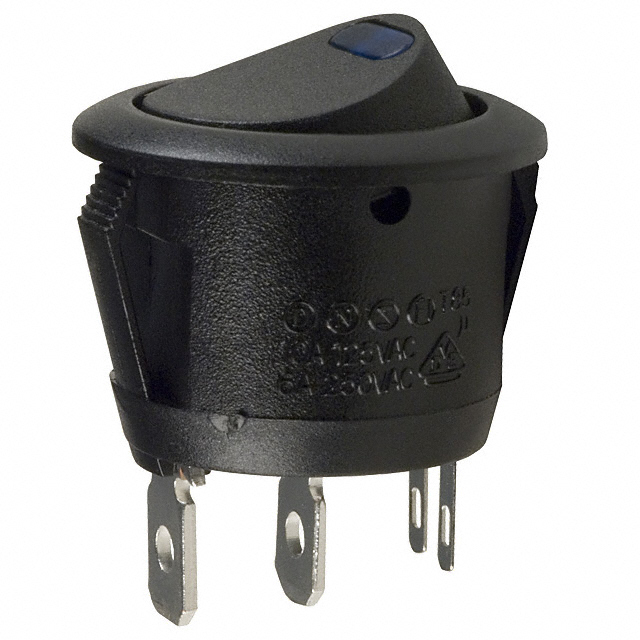

CLS-RC11A125190B

Obsolete

Lumex Opto/Components Inc.

SWITCH ROCKER SPST 10A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CLS-RC11A125190B

Obsolete

Lumex Opto/Components Inc.

SWITCH ROCKER SPST 10A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CLS-RC11A125190B

Actuator Marking	No Marking
Actuator Type	Round - Illuminated
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	10 A
Illumination Type, Color	LED, Blue
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [diameter]	20.2 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V

CLS-RC11 Series

Part	Actuator Type	Termination Style	Current Rating (Amps)	Actuator Marking	Mounting Type	Color - Actuator/Cap	Circuit	Voltage Rating - AC	Switch Function	Illumination Type, Color	Panel Cutout Dimensions [diameter]	Voltage Rating - DC
Lumex Opto/Components Inc. CLS-RC11A125191G	Round - Illuminated	Quick Connect - 0.187" (4.7mm)	10 A	No Marking	Panel Mount Threaded Body with Nut	Black	SPST	125 V	On-Off	Green LED	20.2 mm
Lumex Opto/Components Inc. CLS-RC11A125191B	Round - Illuminated	Quick Connect - 0.187" (4.7mm)	10 A	No Marking	Panel Mount Threaded Body with Nut	Black	SPST	125 V	On-Off	Blue LED	20.2 mm
Lumex Opto/Components Inc. CLS-RC11A125190Y	Round - Illuminated	Quick Connect - 0.187" (4.7mm)	10 A	No Marking	Panel Mount Snap-In	Black	SPST	125 V	On-Off	LED Yellow	20.2 mm
Lumex Opto/Components Inc. CLS-RC11A125190R	Round - Illuminated	Quick Connect - 0.187" (4.7mm)	10 A	No Marking	Panel Mount Snap-In	Black	SPST	125 V	On-Off	LED Red	20.2 mm
Lumex Opto/Components Inc. CLS-RC11A12250Y	Round - Illuminated	Quick Connect - 0.250" (6.3mm)	25 A	No Marking	Panel Mount Snap-In	Black	SPST		On-Off	LED Yellow	24 mm	12 V
Lumex Opto/Components Inc. CLS-RC11A125191R	Round - Illuminated	Quick Connect - 0.187" (4.7mm)	10 A	No Marking	Panel Mount Threaded Body with Nut	Black	SPST	125 V	On-Off	LED Red	20.2 mm
Lumex Opto/Components Inc. CLS-RC11A125191Y	Round - Illuminated	Quick Connect - 0.187" (4.7mm)	10 A	No Marking	Panel Mount Threaded Body with Nut	Black	SPST	125 V	On-Off	LED Yellow	20.2 mm
Lumex Opto/Components Inc. CLS-RC11A12250B	Round - Illuminated	Quick Connect - 0.250" (6.3mm)	25 A	No Marking	Panel Mount Snap-In	Black	SPST		On-Off	Blue LED	24 mm	12 V
Lumex Opto/Components Inc. CLS-RC11A125190G	Round - Illuminated	Quick Connect - 0.187" (4.7mm)	10 A	No Marking	Panel Mount Snap-In	Black	SPST	125 V	On-Off	Green LED	20.2 mm
Lumex Opto/Components Inc. CLS-RC11A125190B	Round - Illuminated	Quick Connect - 0.187" (4.7mm)	10 A	No Marking	Panel Mount Snap-In	Black	SPST	125 V	On-Off	Blue LED	20.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CLS-RC11 Series

Rocker Switch SPST 10A (AC) 125 V Panel Mount, Snap-In
