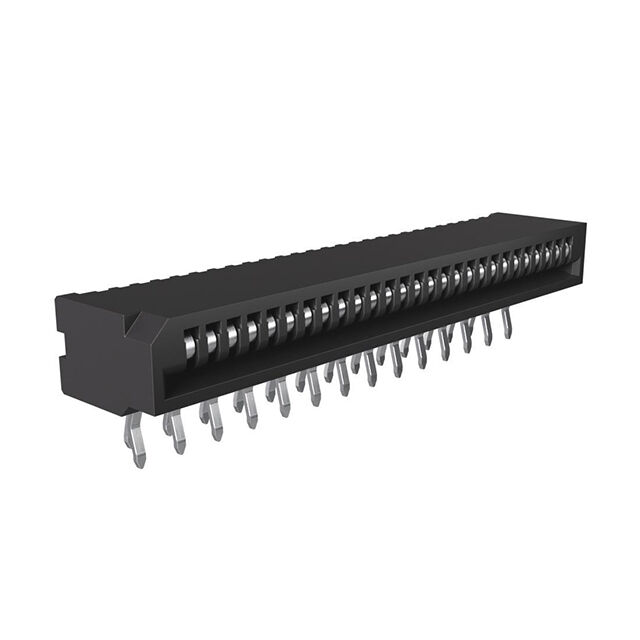

HLW27R-2C7LF

Active

Amphenol ICC (FCI)

CONN FFC FPC TOP 27POS 1MM R/A

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN FFC FPC TOP 27POS 1MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	HLW27R-2C7LF

Actuator Color	Black
Cable End Type	Tapered
Connector/Contact Type	Contacts, Top
Contact Finish	Tin
Contact Material	Phosphor Bronze
Features	Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board	0.154 in
Height Above Board	3.9 mm
Housing Color	Black
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mating Cycles	30
Mounting Type	Through Hole, Right Angle
Number of Positions	27
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Solder
Voltage Rating	100 V

Part	Connector/Contact Type	Material Flammability Rating	FFC, FCB Thickness	Cable End Type	Number of Positions	Housing Material	Pitch [x]	Pitch [x]	Flat Flex Type	Mating Cycles	Features	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board	Height Above Board	Mounting Type	Contact Material	Termination	Housing Color	Voltage Rating	Actuator Color	Contact Finish
Amphenol ICC (FCI) HLW27R-2C7LF	Contacts Top	UL94 V-0	0.3 mm	Tapered	27	Polybutylene Terephthalate (PBT) Glass Filled	0.039 in	1 mm	FFC FPC	30	Solder Retention	85 °C	-55 °C	0.154 in	3.9 mm	Through Hole Right Angle	Phosphor Bronze	Solder	Black	100 V	Black	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	6750	$ 0.18

General part information

27 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Through Hole, Right Angle
