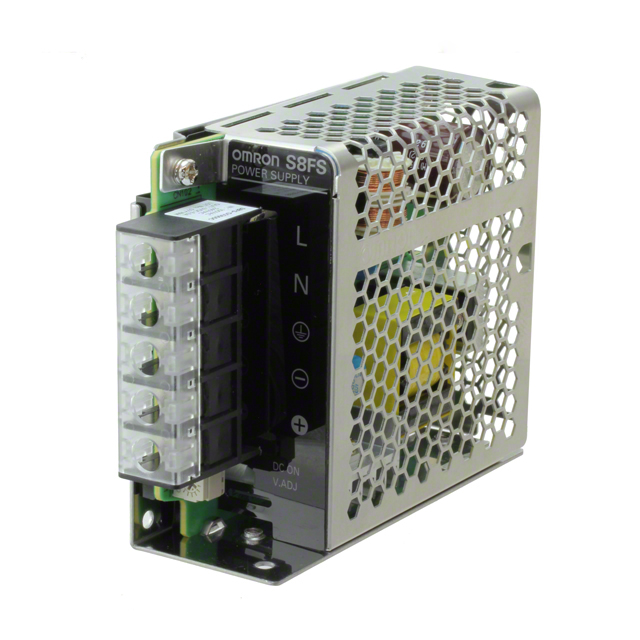

S8FS-G10012C

Active

Omron Electronics Inc-EMC Div

AC/DC CONVERTER 12V 100W

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

AC/DC CONVERTER 12V 100W

Technical Specifications

Parameters and characteristics for this part

Specification	S8FS-G10012C

Applications	ITE (Commercial)
Approval Agency	cURus, TUV, UL, CE
Efficiency	86 %
Features	Universal Input, Adjustable Output, DC Input Capable
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	100 W
Size / Dimension [x]	5.08 in
Size / Dimension [x]	129 mm
Size / Dimension [y]	3.82 in
Size / Dimension [y]	97 mm
Size / Dimension [z]	38 mm
Size / Dimension [z]	1.5 "
Type	Enclosed
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Input Type	Number of Outputs	Voltage - Isolation	Approval Agency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max) [Max]	Voltage - Output 1	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Efficiency	Features	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Type
Omron Electronics Inc-EMC Div S8FS-G10012CD	AC	1	3000 V	CE cURus TUV UL	129 mm	1.54 "	5.08 in	3.82 in	39.2 mm	97 mm	8.5 A	12 V	100 W	-20 °C	70 °C	ITE (Commercial)	86 %	Adjustable Output Universal Input	85 VAC	264 VAC
Omron Electronics Inc-EMC Div S8FS-G10012C		1	3000 V	CE cURus TUV UL	129 mm	3.82 in	5.08 in	1.5 "				12 V	100 W	-20 °C	70 °C	ITE (Commercial)	86 %	Adjustable Output DC Input Capable Universal Input			Chassis Mount	38 mm	97 mm	Enclosed
Omron Electronics Inc-EMC Div S8FS-G10005CD	AC	1	3000 V	CE cURus TUV UL	129 mm	1.54 "	5.08 in	3.82 in	39.2 mm	97 mm	16 A	5 V	80 W	-20 °C	70 °C	ITE (Commercial)	81 %	Adjustable Output Universal Input	85 VAC	264 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
