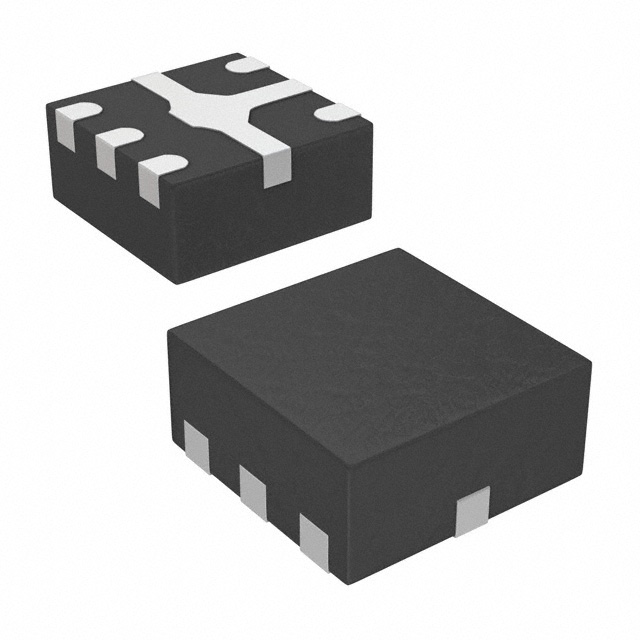

SKY13585-679LF
ActiveSkyworks Solutions Inc.
IC RF SWITCH SPDT 6GHZ 6MLPD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SKY13585-679LF
ActiveSkyworks Solutions Inc.
IC RF SWITCH SPDT 6GHZ 6MLPD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SKY13585-679LF |
|---|---|
| Circuit | SPDT |
| Frequency Range [Max] | 6 GHz |
| Frequency Range [Min] | 1 GHz |
| IIP3 | 56 dBm |
| Impedance | 50 Ohms |
| Insertion Loss | 0.5 dB |
| Isolation | 38 dB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-XFDFN Exposed Pad |
| RF Type | 802.11a/b/g/n/ac |
| Supplier Device Package | 6-MLPD (1x1) |
| Test Frequency | 2.5 GHz |
| Topology | Reflective |
| Voltage - Supply [Max] | 3.3 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.61 | |
| 10 | $ 0.55 | |||
| 25 | $ 0.52 | |||
| 100 | $ 0.42 | |||
| 250 | $ 0.40 | |||
| 500 | $ 0.35 | |||
| 1000 | $ 0.33 | |||
| Digi-Reel® | 1 | $ 0.61 | ||
| 10 | $ 0.55 | |||
| 25 | $ 0.52 | |||
| 100 | $ 0.42 | |||
| 250 | $ 0.40 | |||
| 500 | $ 0.35 | |||
| 1000 | $ 0.33 | |||
| Tape & Reel (TR) | 3000 | $ 0.33 | ||
Description
General part information
SKY13585 Series
RF Switch IC 802.11a/b/g/n/ac SPDT 6 GHz 50Ohm 6-MLPD (1x1)
