1415124

Active

Phoenix Contact

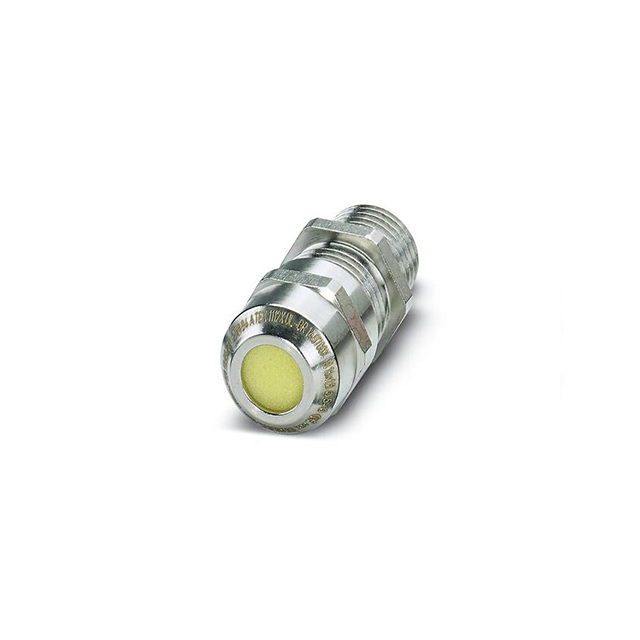

CABLE GLAND 5-10MM M16 BRASS

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 5-10MM M16 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	1415124

Color	Silver
Includes	O-Ring, Seal
Ingress Protection	IP66/IP68
Material	Brass, Nickel Plated
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.394 "
Outside Cable Diameter (Max) [Max] [diameter]	10 mm
Outside Cable Diameter (Min) [Min]	5 mm
Outside Cable Diameter (Min) [Min]	0.197 in
Thread Length	0.472 in
Thread Length	12 mm
Thread Size	M16
Type	Cable Gland

Part	Color	Includes	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Material	Type	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]
Phoenix Contact 1415116	Black Blue	Seal	0.177 in	4.5 mm	IP66/IP68	-40 °C	75 ░C	Polyamide (PA) Nylon	Cable Gland	0.591 in	15 mm	9 mm	0.354 in	M16
Phoenix Contact 1415124	Silver	O-Ring Seal			IP66/IP68	-40 °C	75 ░C	Brass Nickel Plated	Cable Gland	0.472 in	12 mm		10 mm	M16	0.394 "	5 mm	0.197 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 10.07

General part information

Cable Gland Brass, Nickel Plated M16 Silver
